<VV> Changing C878 Power Glide gear shift o-ring. How to get the rod off?

[Ignacio Valdes]

Putting a screwdriver in the right side fitting and wiggling while prying
on the linkage made the shift shaft come out. However, the C878 o-ring
looks way too big. Less of a problem but still a problem the steering
linkage rubber grommet disintegrated.



On Fri, Jul 7, 2017 at 4:06 PM, Ignacio Valdes <ivaldes at hal-pc.org> wrote:

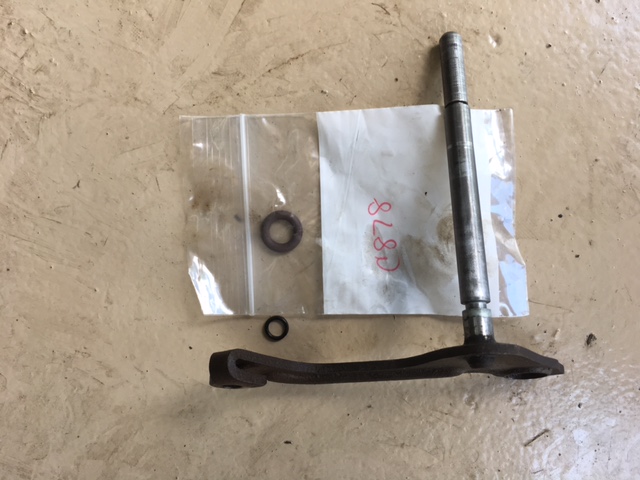

> Hi, my transmission leaks possibly at the Clarks part C878 o-ring where
> the shift rod enters the transmission. I have a new C878 and I am trying to
> change it. I have the pan off and am trying to see how to slide the rod out
> but right now it isn't obvious. See picture.  It seems to resist on the
> right side of the 'clip' that is on the ribbed rod. I don't want to damage
> this for obvious reasons. Is there a right way to do this?
>
>
>
