<VV> CORRECT 64 gas pedal setup

[N2VZD at aol.com]

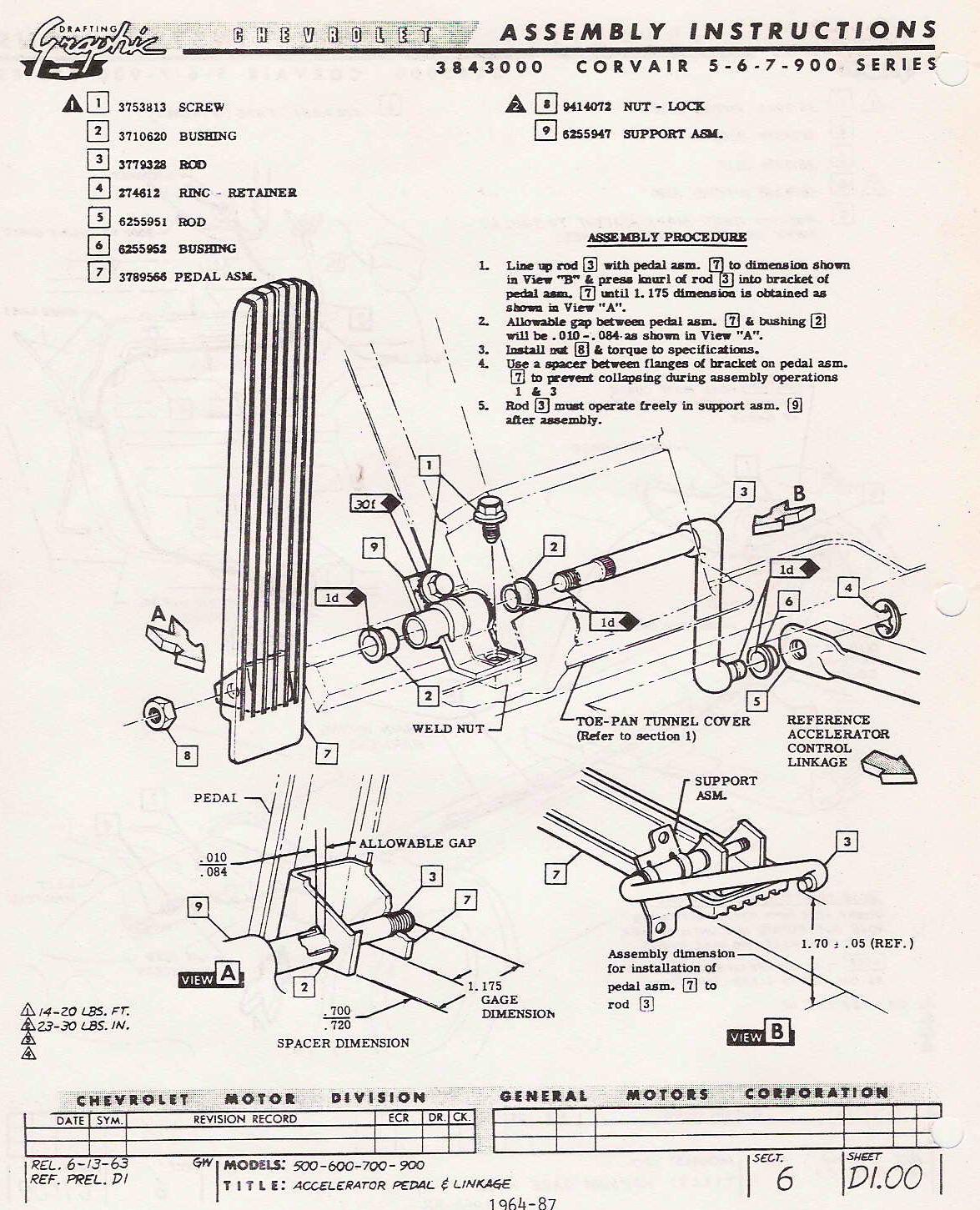

This is a scan of the Clark's 64 car  assembly manual page about  your
question. The real answer is the pedal lines up with the arm that hangs  down ,
then readjust the back linkages.
I would plan on removing that assembly to take it way apart. My past on
these included most were packed with rust and needed the shaft cleaned (wire
wheel) and lubed. It wants to be very free!.
Have fun, I still have at least one new floor mount #9 "support" from my
past with these things.
Hope this helps.
Regards, Tim Colson
64 coupe
64 ized lakewood
63 Rampy
