<VV> FW: corbeau rear seat mounts and seat pictures (was 64 heater duct pictures)

kevin nash wrokit at hotmail.com
Mon Feb 28 11:25:28 EST 2011




> Subject: Re: <VV> FW: corbeau rear seat mounts and seat pictures (was 64 heater duct pictures)
> From: bryan at skiblack.com
> Date: Mon, 28 Feb 2011 11:03:25 -0500
> To: wrokit at hotmail.com
>
> Sounds like a neat project, but the photos didn't come through. You might just post a link to the album (copy and paste from a browser).
>
> --Bryan
>
> On Feb 27, 2011, at 9:08 PM, kevin nash wrote:
>

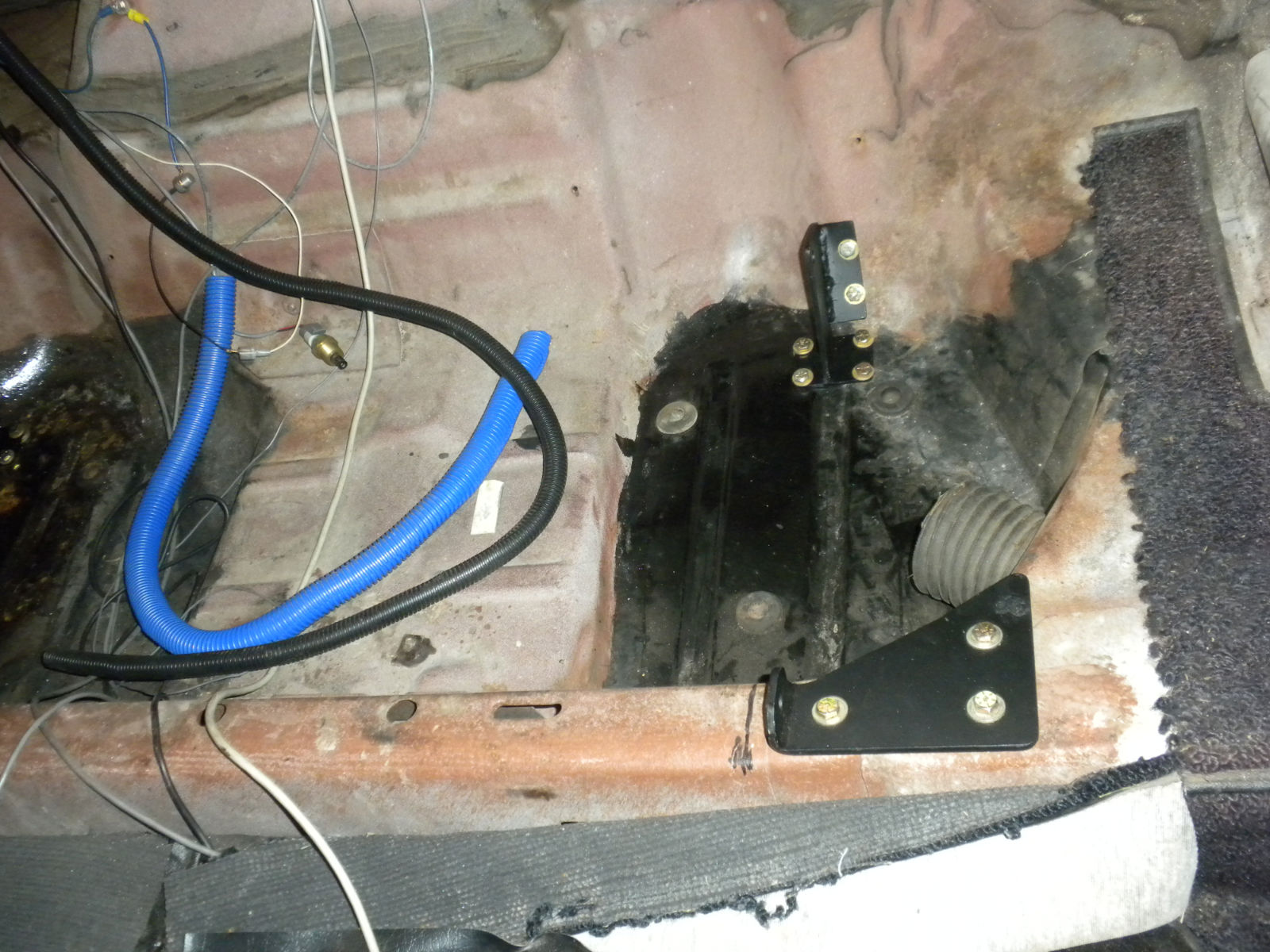

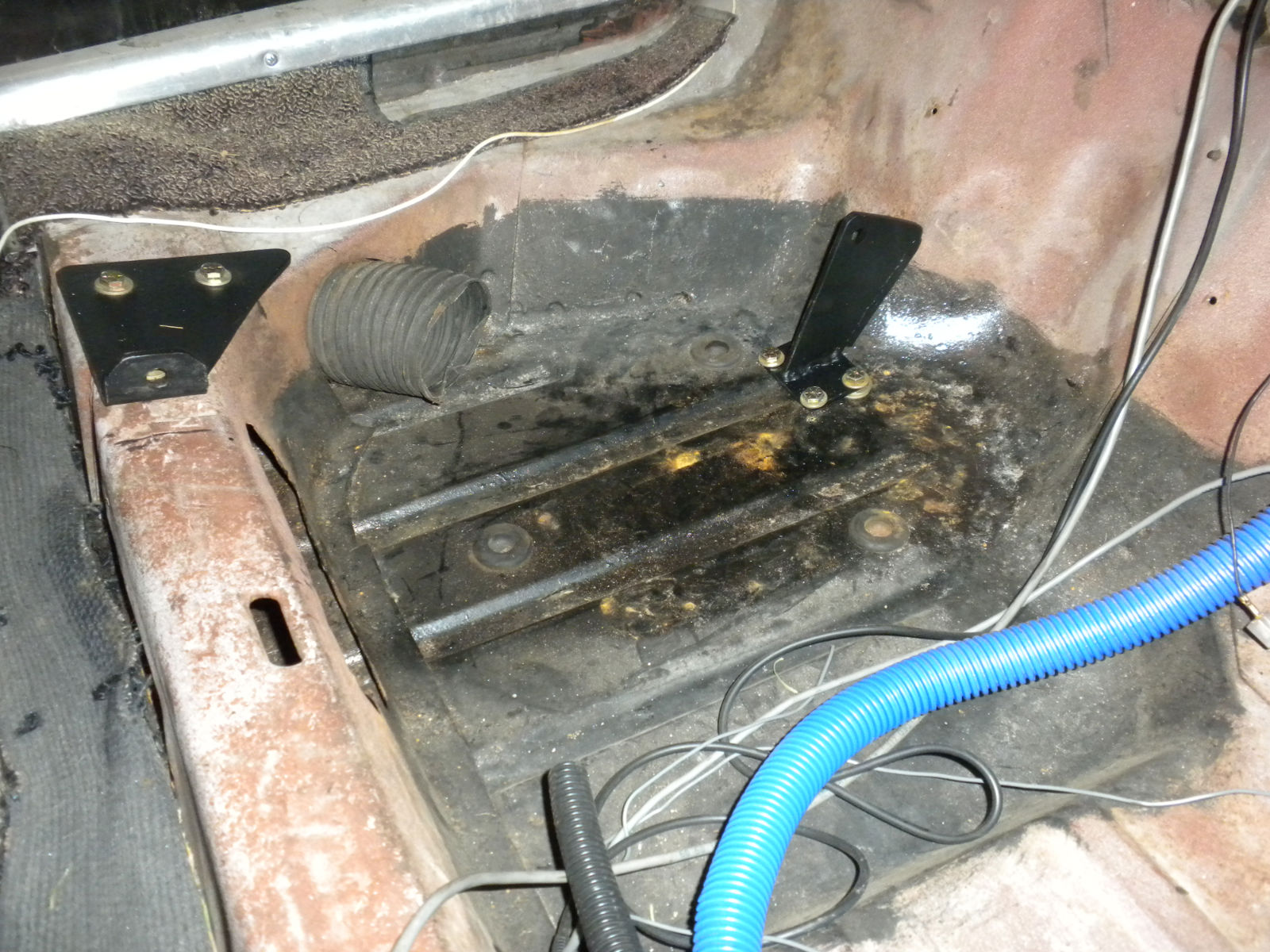

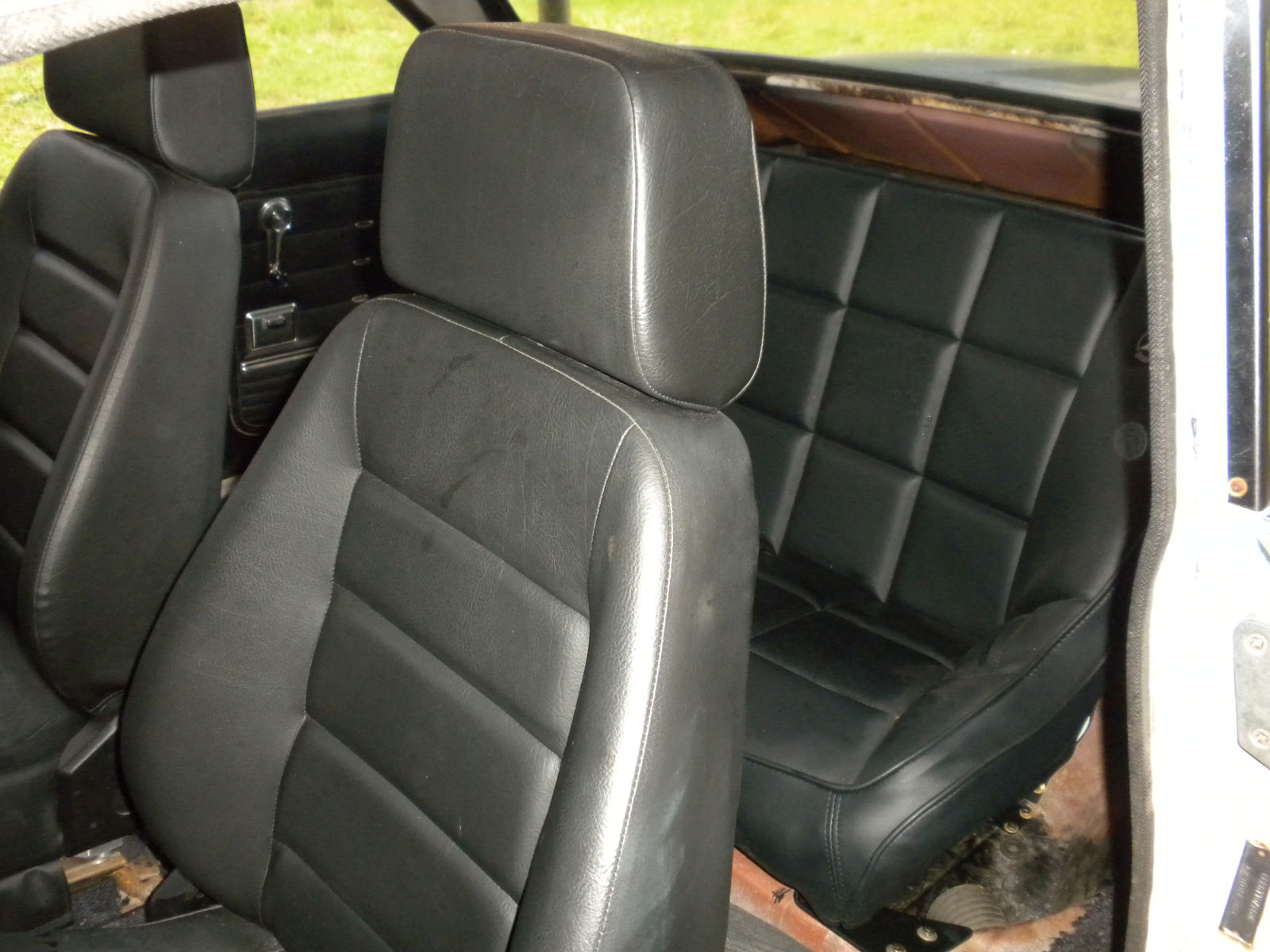

> > Finally, I got the rear seat mounts done, and got the rear seat in-amazingly, all four seat mounting points
> > lined up with the mounts. I havent installed the 64 heater ducts yet, as I found that the hose connectors
> > that I had taken out of my 64 parts car were both drivers side ones ( the one on the passenger side was flipped
> > upside down and looked cheezy mounted that way) so the heater duct install will have to wait until I get the correct
> > piece. Fortunately, this seat is incredibly simple to install and remove- it is so light it can easily be picked
> > up with one arm!
> >
> > Switching to the 64 style ducts saved a bunch of room- if I had tried to use these mounts with the stock
> > (sheet metal style) ducts, each spacer was going to have to be 2 inches long- with the 64 ducts, the spacers were only .74" long.
> > The other advantage is that the mounts are located at the very stiffest point on the pan in that region, because
> > of the two separate pan bends that they are bolted to.
> >
> > Kevin Nash, 63 Spyder, daily driver
>

-------------- next part --------------
A non-text attachment was scrubbed...
Name: 258.JPG
Type: image/jpeg
Size: 390994 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20110228/d883dda5/attachment.jpe
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 259.JPG
Type: image/jpeg
Size: 335786 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20110228/d883dda5/attachment-0001.jpe
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 262.JPG
Type: image/jpeg
Size: 253106 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20110228/d883dda5/attachment-0002.jpe
