BSCC- Brake Lines

[Jim Bengiovanni]

Dear Members,

Those who made the meeting know that Chuck Cromwell believed my description of the brake line assembly was incorrect.  He indeed was correct, I was mistaken.  The rear reservoir does go to the front brakes and the front most reservoir goes to the rear brakes though the hole drilled in the firewall.  Sorry for any confusion I made have caused.

One last think I forgot to mention at the meeting.  You may have to readjust the brake light switch that makes contact with the brake pedal arm under the dash.  Double check it to make sure the brake lights are off with your foot off the pedal.

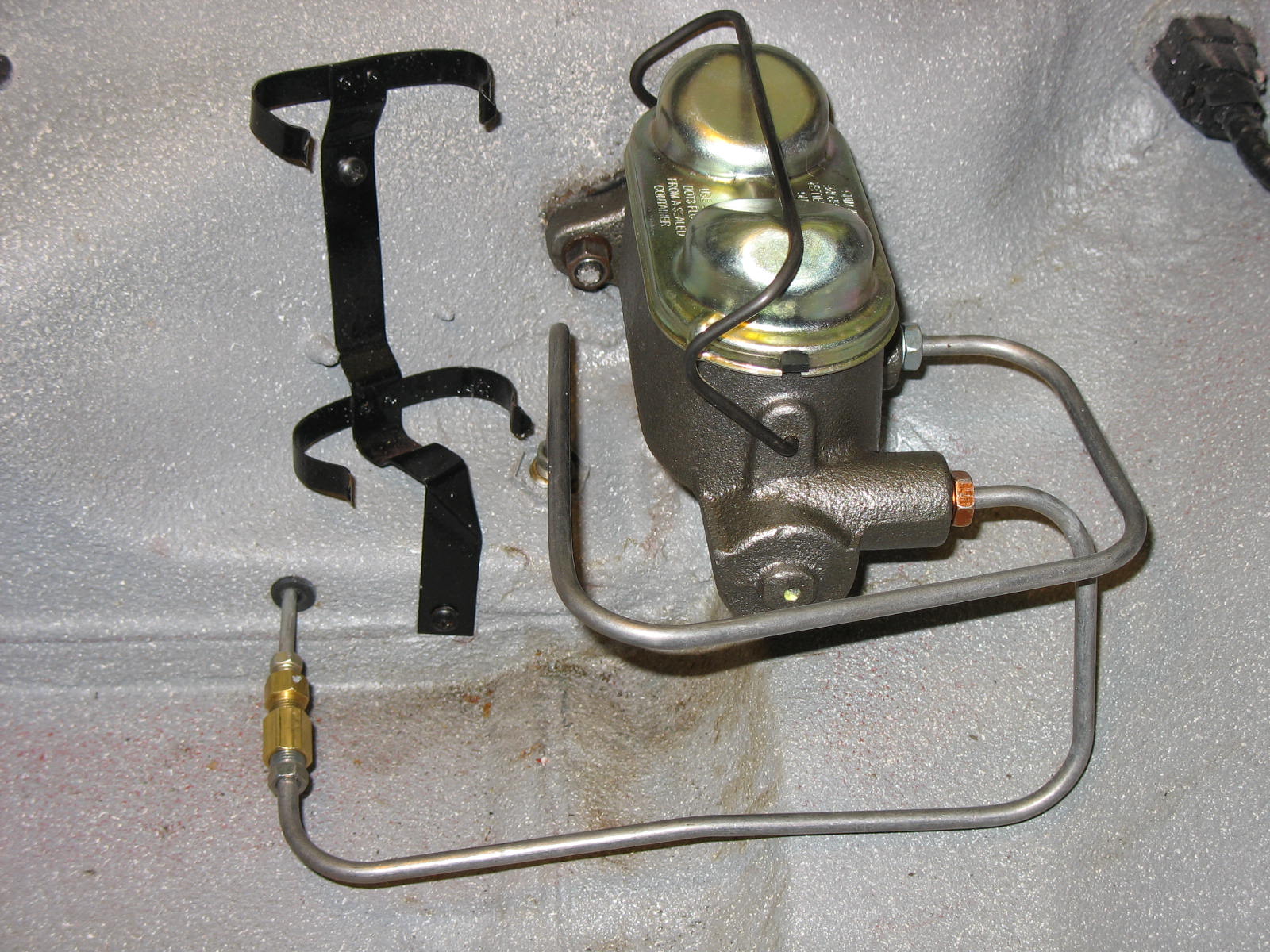

See attached photo for master cylinder line routing.

Regards to All,

Jim Bengiovanni


----------------------------------------------------
