<VV> VirtualVairs Digest, Vol 165, Issue 26

Sun Oct 28 09:40:28 EDT 2018

Re: Timing and Dwell Setting
Frank,
I'm not sure what your point was about the comment that timing doesn't care
about what triggers it.  While the timing may not care what triggers it, it
will certainly be affected by the dwell setting on a point system.  That's
why I suggested that the timing be rechecked after putting points back into
the distributor of the '65 140 from a previous electronic system.
The dwell setting absolutely affects ignition timing if it is changed.
Standard tune-up procedures always prescribe that timing be set after
points are installed and adjusted, either with feeler gauges or a dwell
meter.  Dwell is the amount of distributor rotation that occurs when the
points are closed so when they open after this time period, the plug is
fired due to the collapse of the secondary circuit in the coil.
Just trying to make it clear for someone going back to the old system.
Thanks.
Gary Szuch

On Sat, Oct 27, 2018 at 12:00 PM <virtualvairs-request at corvair.org> wrote:

> Send VirtualVairs mailing list submissions to
>         virtualvairs at corvair.org
>
> To subscribe or unsubscribe via the World Wide Web, visit
>         http://www.vv.corvair.org/mailman/listinfo/virtualvairs
> or, via email, send a message with subject or body 'help' to
>         virtualvairs-request at corvair.org
>
> You can reach the person managing the list at
>         virtualvairs-owner at corvair.org
>
> When replying, please edit your Subject line so it is more specific
> than "Re: Contents of VirtualVairs digest..."
>
>
> Please also edit to include only the topic you're responding to when
> replying to a Digest.
> This message was sent by the VirtualVairs mailing list, all copyrights are
> the property
> of the writer, please attribute properly.
> For help, mail to: vv-help at corvair.org
> Archives at http://www.vv.corvair.org/pipermail/virtualvairs/
> This list sponsored by the Corvair Society of America,
> http://www.corvair.org/
> Change your options:
> http://www.vv.corvair.org/mailman/options/virtualvairs
> http://www.vv.corvair.org/archive.htm
>
> Today's Topics:
>
>    1. Re: Dwell setting on 65 manual 140 engine (FrankDuVal)
>    2. How to post pictures (Todd Miller)
>    3. Anyone know what these are? (Todd Miller)
>    4. Anyone know what this is? (Todd Miller)
>    5. Re: Anyone know what this is? (Mike Moyer)
>    6. Re: Anyone know what this is? (Mike Moyer)
>    7. Re: Anyone know what this is? (Todd Miller)
>    8. Re: How to post pictures (Bryan Blackwell)
>
>
> ----------------------------------------------------------------------
>
> Message: 1
> Date: Fri, 26 Oct 2018 23:09:50 -0400
> From: FrankDuVal <corvairduval at cox.net>
> To: virtualvairs at corvair.org
> Subject: Re: <VV> Dwell setting on 65 manual 140 engine
> Message-ID: <6233fed0-8732-56c8-3b5e-93239b9cd2c5 at cox.net>
> Content-Type: text/plain; charset=utf-8; format=flowed
>
> Shop manual has the information. A copy can be found here:
>
> http://1969corvair.com/techpages/Corvair_Tech_Page_Index.html
>
> Timing does not care what triggers spark, points or electronic pickup.
>
> All Corvairs with points (and also most any GM 6) 31 to 34? dwell.
>
> 140 manual 16 to 20 ? BTC
>
> Interesting, the 1965 shop manual has no specs for 140 automatic?????
>
> Frank DuVal
>
>
> On 10/24/2018 8:25 PM, John Gull via VirtualVairs wrote:
> > Well it has been well over 15 years since I have had to use points.  I
> don?t remember what the dwell or timing should be. Any help will be greatly
> appreciated. The motor is a manual 140 hp on premium gas. Thanks John Gull
> in Asheville NC
>
>
>
> ------------------------------
>
> Message: 2
> Date: Fri, 26 Oct 2018 23:24:02 -0400
> From: Todd Miller <chieftam at aol.com>
> To: virtualvairs at corvair.org
> Subject: <VV> How to post pictures
> Message-ID: <166b38cd3a6-1ec6-34d7 at webjas-vaa161.srv.aolmail.net>
> Content-Type: text/plain; charset=utf-8
>
>
> How do you post pictures within your email?? I am trying to identify a
> Corvair part, but just attaching it to the email is not working.? Thanks.
> ?
> Todd
>
> ------------------------------
>
> Message: 3
> Date: Fri, 26 Oct 2018 17:18:15 -0400
> From: Todd Miller <chieftam at aol.com>
> To: virtualvairs at corvair.org
> Subject: <VV> Anyone know what these are?
> Message-ID: <166b23defac-1ec2-307e at webjas-vae120.srv.aolmail.net>
> Content-Type: text/plain; charset="utf-8"
>

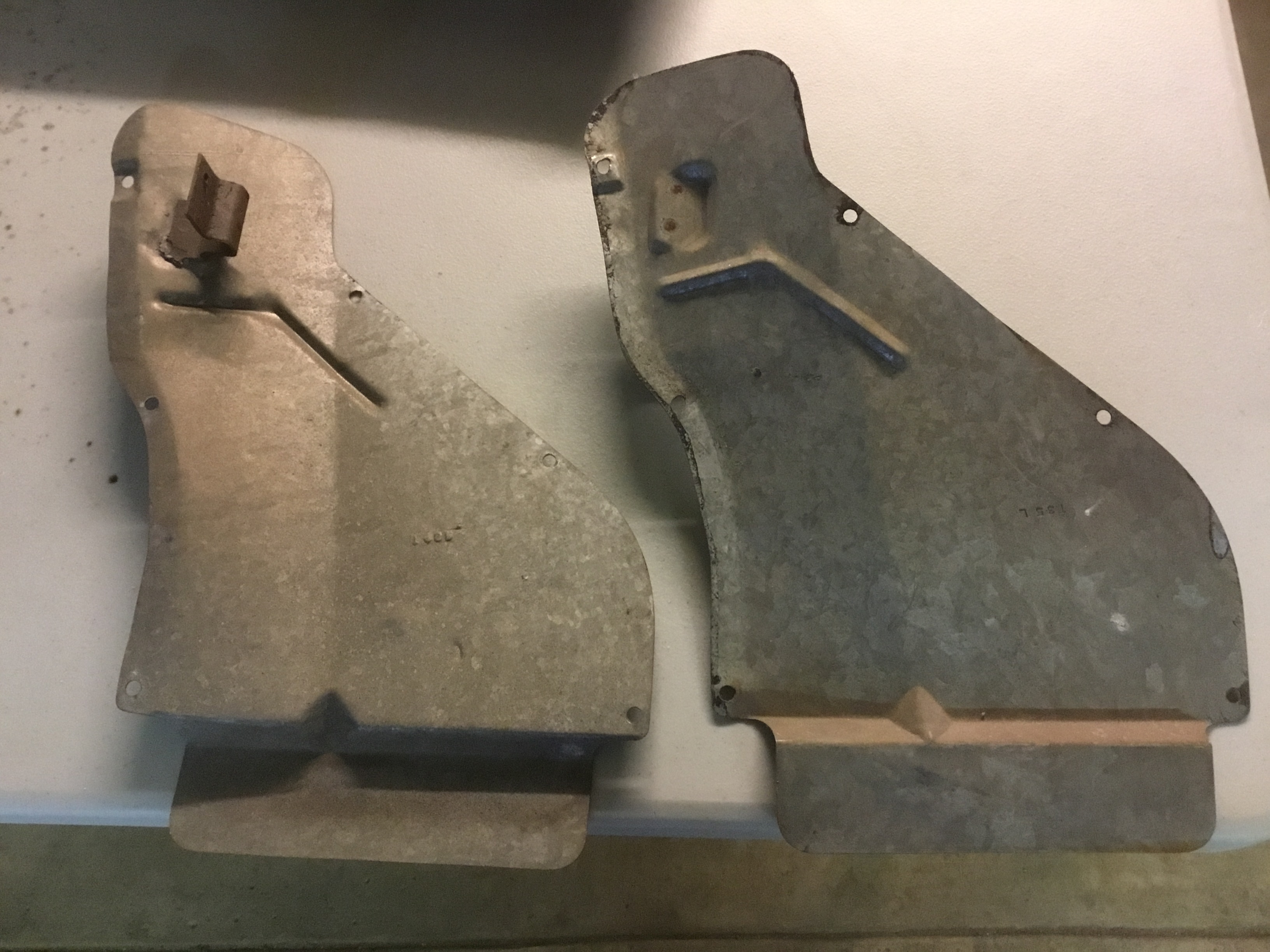

> I?m working on my 1965 Corsa Turbo Convertible. It has been apart for a
> while.  I have these two tin pieces. They are obviously the same, mirrored
> shape for left and right.  Can any of you Corvair gurus tell me what they
> are? Thanks.
>
> Todd
> MN
>
>
>
> Sent from AOL Mobile Mail
> Get the new AOL app: mail.mobile.aol.com
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: photo.jpeg
> Type: image/jpeg
> Size: 1300986 bytes
> Desc: not available
> URL: <
> http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20181026/55cdd0d7/attachment.jpeg
> >
>
> ------------------------------
>
> Message: 4
> Date: Sat, 27 Oct 2018 00:03:12 -0400
> From: Todd Miller <chieftam at aol.com>
> To: virtualvairs at corvair.org
> Subject: <VV> Anyone know what this is?
> Message-ID: <166b3b0ade7-1ec1-3667 at webjas-vac016.srv.aolmail.net>
> Content-Type: text/plain; charset="utf-8"
>
> I?m working on my 1965 Corsa Turbo Convertible. It has been apart for a
> while. ?I have these two tin pieces. They are obviously the same, mirrored
> shape for left and right. ?Can any of you Corvair gurus tell me what they
> are? Thanks.?
> Todd
> MN
>
>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: Corvair part rsize.jpeg
> Type: image/jpeg
> Size: 28539 bytes
> Desc: not available
> URL: <
> http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20181027/dbda4894/attachment.jpeg
> >
>
> ------------------------------
>
> Message: 5
> Date: Sat, 27 Oct 2018 05:25:12 +0000 (UTC)
> From: Mike Moyer <vairvert67 at yahoo.com>
> To: Todd Miller <chieftam at aol.com>,  Todd Miller via VirtualVairs
>         <virtualvairs at corvair.org>,  "virtualvairs at corvair.org"
>         <virtualvairs at corvair.org>
> Subject: Re: <VV> Anyone know what this is?
> Message-ID: <1537510986.17215008.1540617912876 at mail.yahoo.com>
> Content-Type: text/plain; charset=UTF-8
>
> They go behind rear arm rest panels. On each side of the rear seat
>
> Sent from Yahoo Mail on Android
>
>   On Sat, Oct 27, 2018 at 8:22, Todd Miller via VirtualVairs<
> virtualvairs at corvair.org> wrote:   I?m working on my 1965 Corsa Turbo
> Convertible. It has been apart for a while. ?I have these two tin pieces.
> They are obviously the same, mirrored shape for left and right. ?Can any of
> you Corvair gurus tell me what they are? Thanks.?
> Todd
> MN
>
>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: Corvair part rsize.jpeg
> Type: image/jpeg
> Size: 28539 bytes
> Desc: not available
> URL: <
> http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20181027/dbda4894/attachment.jpeg
> >
>  _______________________________________________
> This message was sent by the VirtualVairs mailing list, all copyrights are
> the property
> of the writer, please attribute properly. For help, mailto:
> vv-help at corvair.org
> This list sponsored by the Corvair Society of America,
> http://www.corvair.org/
> Post messages to: VirtualVairs at corvair.org
> Change your options:
> http://www.vv.corvair.org/mailman/options/virtualvairs
> Archives: http://www.vv.corvair.org/archive.htm
>  _______________________________________________
>
>
> ------------------------------
>
> Message: 6
> Date: Sat, 27 Oct 2018 05:25:12 +0000 (UTC)
> From: Mike Moyer <vairvert67 at yahoo.com>
> To: Todd Miller <chieftam at aol.com>,  Todd Miller via VirtualVairs
>         <virtualvairs at corvair.org>,  "virtualvairs at corvair.org"
>         <virtualvairs at corvair.org>
> Subject: Re: <VV> Anyone know what this is?
> Message-ID: <1537510986.17215008.1540617912876 at mail.yahoo.com>
> Content-Type: text/plain; charset=UTF-8
>
> They go behind rear arm rest panels. On each side of the rear seat
>
> Sent from Yahoo Mail on Android
>
>   On Sat, Oct 27, 2018 at 8:22, Todd Miller via VirtualVairs<
> virtualvairs at corvair.org> wrote:   I?m working on my 1965 Corsa Turbo
> Convertible. It has been apart for a while. ?I have these two tin pieces.
> They are obviously the same, mirrored shape for left and right. ?Can any of
> you Corvair gurus tell me what they are? Thanks.?
> Todd
> MN
>
>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: Corvair part rsize.jpeg
> Type: image/jpeg
> Size: 28539 bytes
> Desc: not available
> URL: <
> http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20181027/dbda4894/attachment.jpeg
> >
>  _______________________________________________
> This message was sent by the VirtualVairs mailing list, all copyrights are
> the property
> of the writer, please attribute properly. For help, mailto:
> vv-help at corvair.org
> This list sponsored by the Corvair Society of America,
> http://www.corvair.org/
> Post messages to: VirtualVairs at corvair.org
> Change your options:
> http://www.vv.corvair.org/mailman/options/virtualvairs
> Archives: http://www.vv.corvair.org/archive.htm
>  _______________________________________________
>
>
> ------------------------------
>
> Message: 7
> Date: Sat, 27 Oct 2018 11:08:12 -0400
> From: Todd Miller <chieftam at aol.com>
> To: vairvert67 at yahoo.com, virtualvairs at corvair.org,
>         virtualvairs at corvair.org
> Subject: Re: <VV> Anyone know what this is?
> Message-ID: <166b6118268-1ec4-393f at webjas-vab083.srv.aolmail.net>
> Content-Type: text/plain; charset=utf-8
>
> I was thinking that was what they were, but I couldn't find anything in my
> body shop or assembly manuals, and I didn't really want to tear apart my 69
> convertible interior to find out for sure.??
> ?
> Thanks for the assistance, and thanks Matt, I didn't realize that big
> pictures needed to be approved by a moderator.? Sorry for the extra work.?
> I will post small pictures in the future.
> ?
> Now I can get back to putting the new interior in.? I have someone going
> to help me to get it fired up again and back on the road, and then most
> likely putting it up for sale.? Love the turbo, but my LeMans Blue 69
> Convertible is too special to me and I barely have enough time to enjoy
> driving it.? Maybe more time when I retire...
> ?
> Todd
> ?
> In a message dated 10/27/2018 12:25:17 AM Central Standard Time,
> vairvert67 at yahoo.com writes:
>
> ?
> They go behind rear arm rest panels. On each side of the rear seat
>
> Sent from Yahoo Mail on Android
>
> On Sat, Oct 27, 2018 at 8:22, Todd Miller via VirtualVairs
> <virtualvairs at corvair.org> wrote:
> I?m working on my 1965 Corsa Turbo Convertible. It has been apart for a
> while. ?I have these two tin pieces. They are obviously the same, mirrored
> shape for left and right. ?Can any of you Corvair gurus tell me what they
> are? Thanks.?
> Todd
> MN
> ?
> ?
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: Corvair part rsize.jpeg
> Type: image/jpeg
> Size: 28539 bytes
> Desc: not available
> URL: <
> http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20181027/dbda4894/attachment.jpeg
> >
> _______________________________________________
> This message was sent by the VirtualVairs mailing list, all copyrights are
> the property
> of the writer, please attribute properly. For help, mailto:
> vv-help at corvair.org
> This list sponsored by the Corvair Society of America,
> http://www.corvair.org/
> Post messages to: VirtualVairs at corvair.org
> Change your options:
> http://www.vv.corvair.org/mailman/options/virtualvairs
> Archives: http://www.vv.corvair.org/archive.htm
> _______________________________________________
>
> ------------------------------
>
> Message: 8
> Date: Sat, 27 Oct 2018 11:12:01 -0400
> From: Bryan Blackwell <bryan at skiblack.com>
> To: Todd Miller <chieftam at aol.com>
> Cc: virtualvairs at corvair.org
> Subject: Re: <VV> How to post pictures
> Message-ID: <B4E53BC6-26AA-4622-9882-EC53247B9893 at skiblack.com>
> Content-Type: text/plain;       charset=us-ascii
>
> Just attach and send.  Because of their size, pictures are held and must
> be approved, we get notified three times a day of held posts.
>
> --Bryan
>
> > On Oct 26, 2018, at 11:24 PM, Todd Miller via VirtualVairs <
> virtualvairs at corvair.org> wrote:
> >
> > How do you post pictures within your email?  I am trying to identify a
> Corvair part, but just attaching it to the email is not working.  Thanks.
> >
> > Todd
>
>
>
> ------------------------------
>
> Subject: Digest Footer
>
> _______________________________________________
> This message was sent by the VirtualVairs mailing list, all copyrights are
> the property
> of the writer, please attribute properly. For help, mail to:
> vv-help at corvair.org
> This list sponsored by the Corvair Society of America,
> http://www.corvair.org/
> VirtualVairs at corvair.org
> http://www.vv.corvair.org/mailman/listinfo/virtualvairs
> Change your options:
> http://www.vv.corvair.org/mailman/options/virtualvairs
>
> ------------------------------
>
> End of VirtualVairs Digest, Vol 165, Issue 26
> *********************************************
>
