<VV> HEADLAMP GROUND WIRE

ERICH MEYER eamsquared at comcast.net
Sat Mar 4 14:53:28 EST 2017

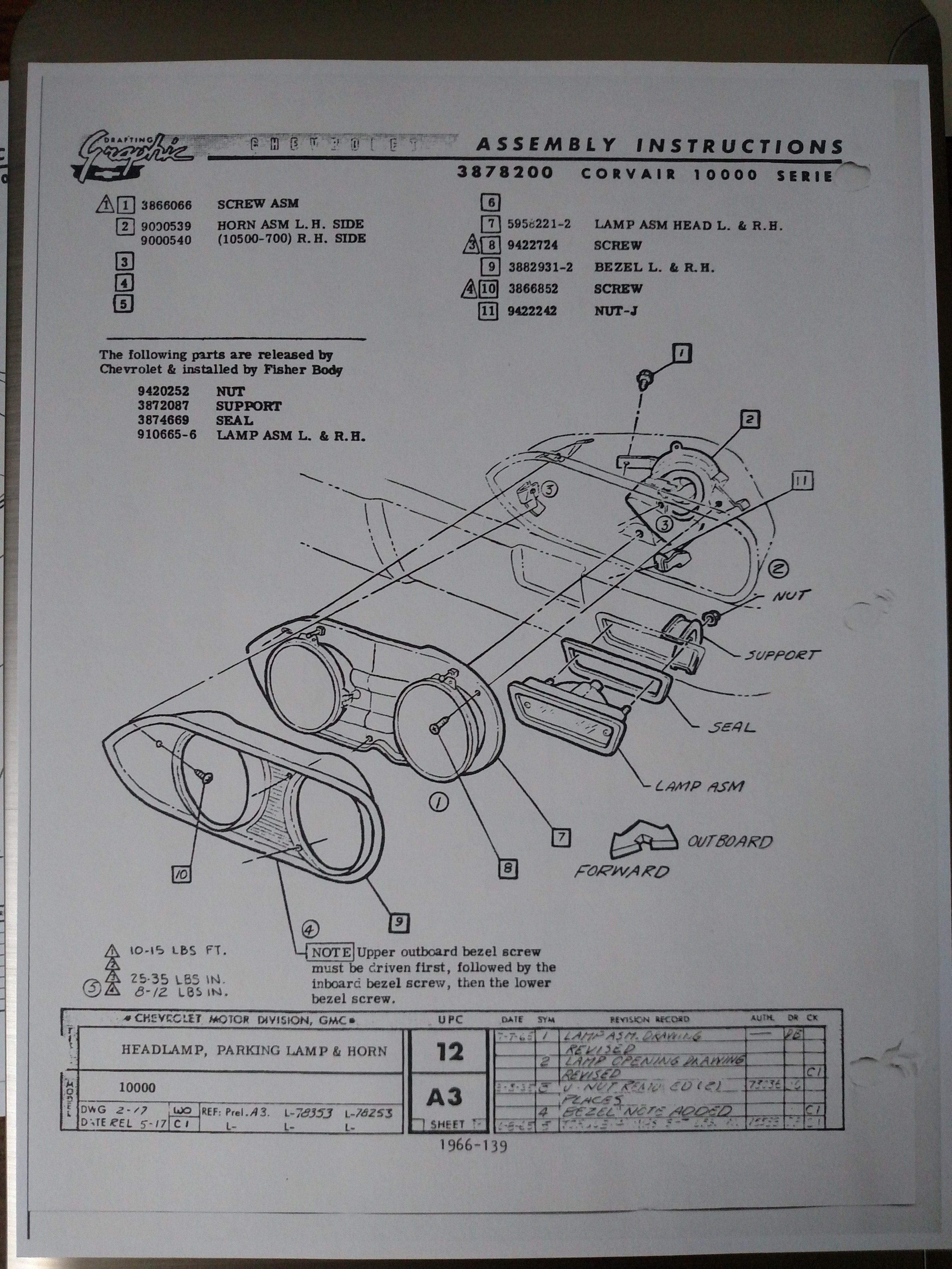

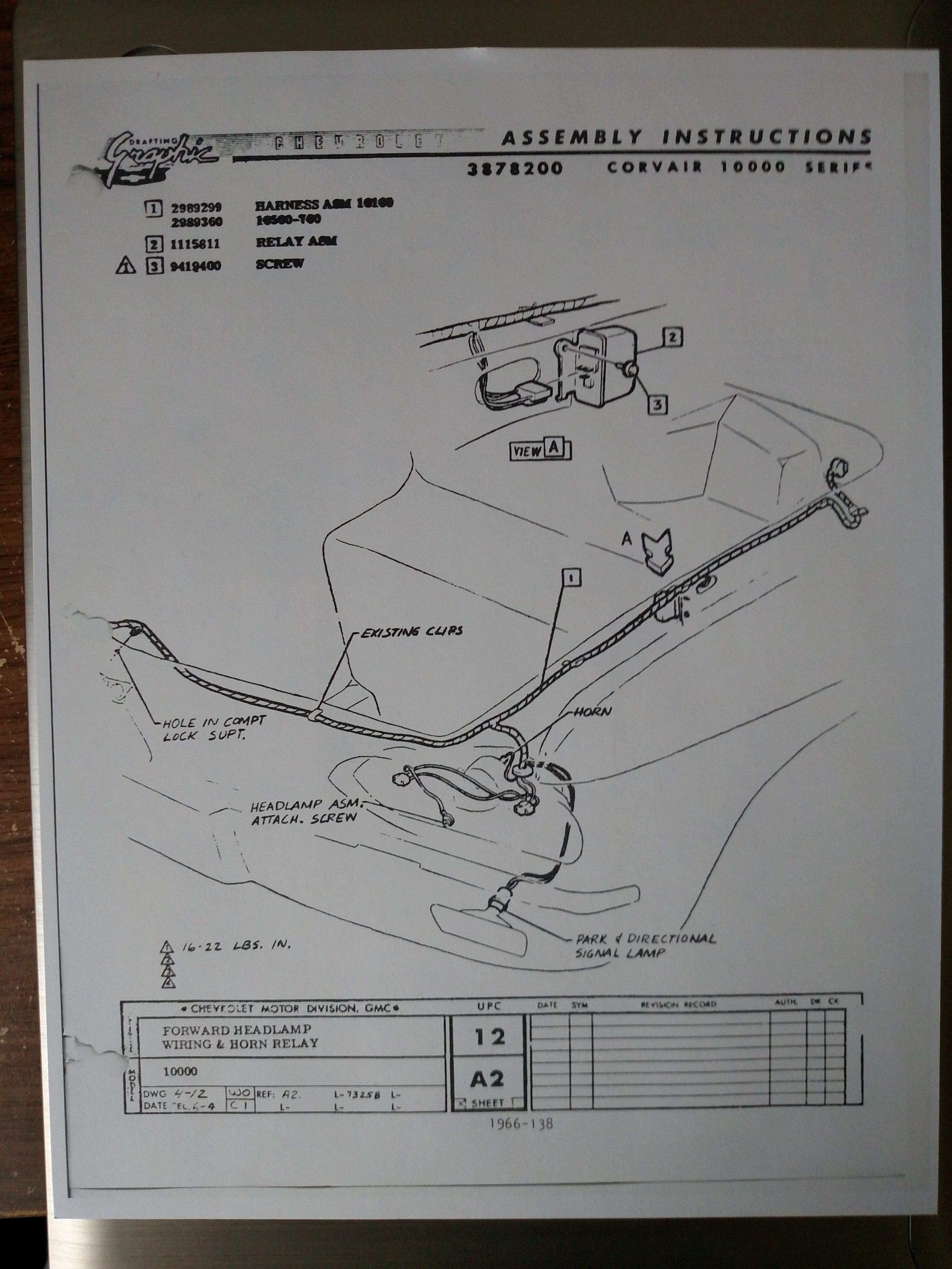

The headlamp groundwire is attached to the lamp assembly head as shown on the attached Assembly Manual UPC 12 Sheets A2 and A3.


Erich Meyer

Bayshore Corvair

Original Owner 66 2dr Monza 110 PG

-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_20170304_144620358.jpg
Type: image/jpeg
Size: 2158856 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20170304/af16ea7e/attachment.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_20170304_144631648.jpg
Type: image/jpeg
Size: 2549675 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20170304/af16ea7e/attachment-0001.jpg>
