<VV> early model generator

[William Hubbell]

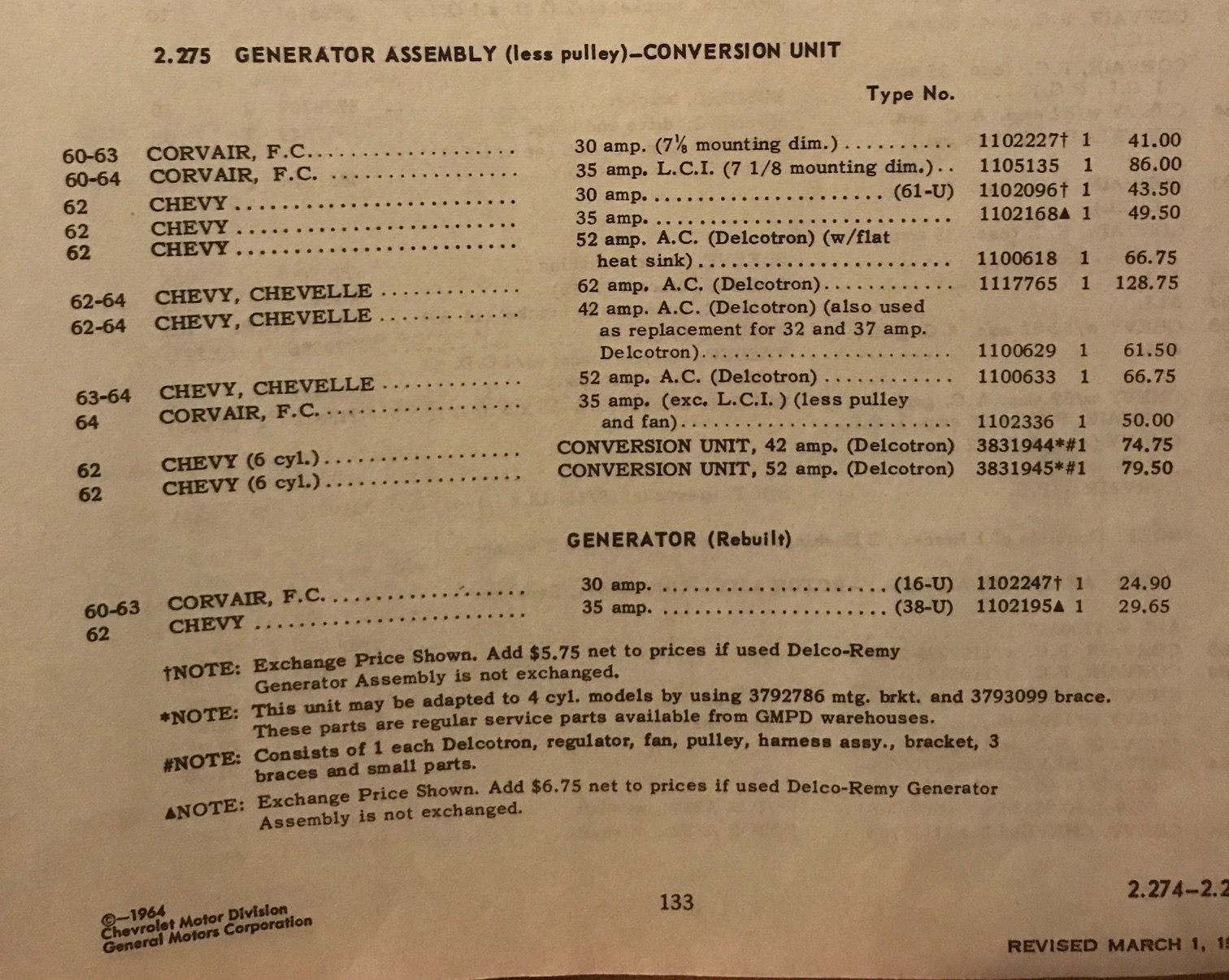

>From March 1, 1964 parts book:

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image1.JPG
Type: image/jpeg
Size: 496055 bytes
Desc: not available
URL: <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20170802/acf0daf3/attachment.jpe>
-------------- next part --------------


Bill

On Aug 2, 2017, at 9:10 PM, Jim Becker <mr.jebecker at gmail.com> wrote:

OK, but the '63 and '64 generators look pretty similar to me.

The clean one is a 226 ('63 with correct date code) and the dirty one is a 336 ('64 with correct date code).

Jim Becker

-----Original Message----- From: William Hubbell
Sent: Tuesday, August 01, 2017 9:11 PM
To: Jim Becker
Cc: Joel McGregor ; Virtual Vairs
Subject: Re:  early model generator

Not true.  All '64s generators had rear facing terminals.

Bill

On Aug 1, 2017, at 4:56 PM, Jim Becker via VirtualVairs <virtualvairs at corvair.org> wrote:

A '64 passenger car used 1102336 which had the terminals pointing essentially up.

-----Original Message----- From: Joel McGregor via VirtualVairs
Sent: Tuesday, August 01, 2017 11:41 AM
Cc: Virtual Vairs
Subject: Re:  early model generator

So the correct terminals for the '64 are the rear ones like the FC?  My '64 has the rear terminals and I've noticed a few other 64's that did.  I always just assumed that mine had an FC generator but I guess not.

Joel McGregor


________________________________________
From: VirtualVairs [virtualvairs-bounces at corvair.org] on behalf of Jim Becker via VirtualVairs [virtualvairs at corvair.org]
Sent: Sunday, July 30, 2017 4:28 PM
To: Doug Mackintosh; kovacsmj at yahoo.com
Cc: Virtual Vairs
Subject: Re: <VV> early model generator

And the 3C25 is a manufacturing date code
1963
March
25th

-----Original Message-----
From: Doug Mackintosh via VirtualVairs
Sent: Sunday, July 30, 2017 1:11 PM
To: kovacsmj at yahoo.com
Cc: Virtual Vairs
Subject: Re:  early model generator

According to the Junkyard Primer booklet 1102226 is a 1960-1963 Except FC &
Station wagon generator. 30 Amps with terminals pointing up.
<<Date: Sun, 30 Jul 2017 10:45:04 +0000 (UTC)From: Michael Kovacs
<kovacsmj at yahoo.com>
To: Virtual Vairs <virtualvairs at corvair.org>
Subject: <VV> early model generator
Message-ID: <1567191968.2801113.1501411504871 at mail.yahoo.com>
Content-Type: text/plain; charset=UTF-8

I found a generator in my stash. I don't do earlies. What do the 1102226?
3c25 numbers indicate? Somebody want it? Shipping cost only.>>

-- Doug Mackintosh Corsa member since 1996 Corsa/NC member since 1996,
Virtual Vairs member Corvair owner 1969-1971 and 1996-on
<IMG_6718-s.JPG>
<gen64b-s.JPG>
