<VV> 66 A/C Question

[Frank DuVal]

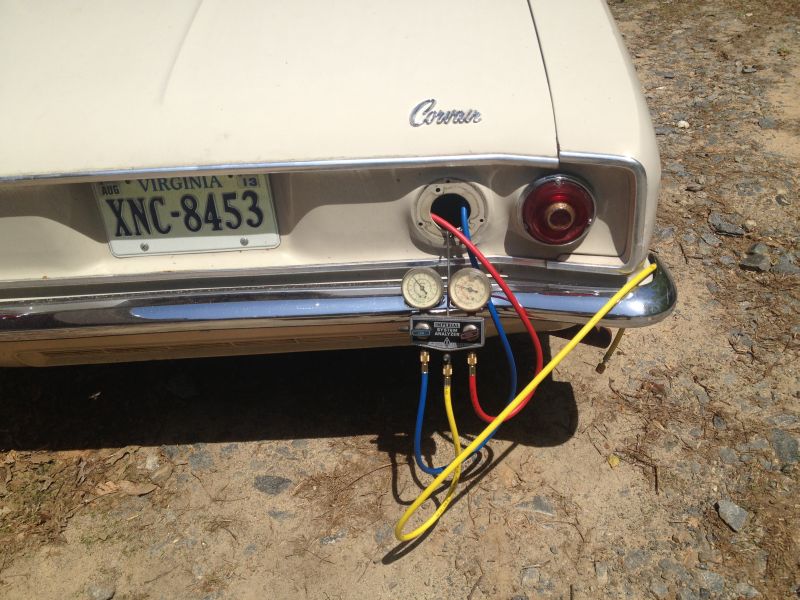

Let me try a picture. Then add tape to seal around the hoses, not duct tape!

Frank

On 8/18/2016 8:52 PM, Garry via VirtualVairs wrote:
> Frank,
>
> Thanks for the wonderful list. I hit maybe 40-50% of those items. This
> weekend I will address the rest of them. Timothy - by disconnected,
> what I should have said was that the compressor had been off the
> bracket and laying off to the side for several years. The system was
> never opened, in fact it still had some pressure. Before attempting
> the charge, I had removed, cleaned and straightened the condenser
> fins, repaired all the dash cables, repaired the fan switch, ohmed the
> thermostat, replaced the lid switch, added a relay to protect the fan
> switch, tightened up all hose clamps, and ran the vacuum and let it
> sit overnight.  While charging I had the lid down, but not latched as
> the hoses were just laid across the seal. I had not removed the
> back-up light. Last night I tried again, but my pressures were still
> higher than what Cliff listed in his reply (Thanks Cliff), so when I
> make more repairs this weekend I will bleed down again, pull a vacuum,
> and start over. I have been using what's left over in a 30# can of
> R-12, so not entirely sure how much was put in, but sure didn't seem
> like much. I'll use a scale next time.
>
> And yes, Bob, you are correct - this is an excellent list! I should
> have posed my questions the first night!
>
> Thanks all - I'll keep you posted on the progress.
>
> Garry
>
>
> On 8/17/2016 10:55 PM, Frank DuVal via VirtualVairs wrote:
>> Notes:
>>
>> 1. Engine compartment must be sealed up on 66, 67 models. Tape rust
>> holes! That worked for me...
>>
>> 2. Remove backup lamp assembly and run hoses through the hole, tape
>> openings closed.
>>
>> 3. Sight glass should run clear when the charge is enough (or too
>> much!), while compressor is running.
>>
>> 4. White bubbles usually means not enough R-12 yet. How many pounds
>> have you put in? Note, some cans are only 12 ounces. System holds
>> about 4.5 pounds.
>>
>> 5. Tighten the belt. 200 psi is nothing in high temperatures. If it
>> is squealing at 200 psi, something is wrong, start with loose belt.
>> There is a reason there are so many braces on the old A-6 compressor.
>> Clutch should easily handle 350 psi, but hope you never see that. If
>> it slips at 200 psi, it is bad.
>>
>> 6. I do not have a set of gauges in front of me, but the low pressure
>> side should run about 35 degrees F. , whatever pressure equals that
>> on the gauge face. Anything lower than 35 and the evaporator can
>> freeze up. Or so.... AT least the center dash outlet should not be
>> below 35 degrees F. Shoot for high 30s to 40.
>>
>> 7. Temperature is actually controlled by thermostat cycling the
>> compressor, but the charge has to be near correct for that to operate
>> properly.
>>
>> 8. The rubber seals on top and bottom of condenser are very
>> important. So is taking the condenser off the firewall and cleaning
>> all the leaves/junk out from behind it. Also blow through the
>> condenser to clean the fins. And comb the fins where they usually get
>> flattened.
>>
>> 9. If you run the compressor with the engine lid open, pressure will
>> get too high and rupture a hose or worse. Note, this can cause
>> blindness if refrigerant gets in your eyes.
>>
>> 10. Old seat of pants rule, if sight glass runs clear with compressor
>> on, then bubbles form about 2-5 seconds after compressor cycles off,
>> charge is fine.
>>
>> 11. If center outlet temperature is high, low pressure is high, and
>> sight glass does not get bubbles after compressor shuts off, system
>> is overcharged. Hopefully you never get that far.
>>
>>
>> Others may have different rules or observations...
>>
>> Frank DuVal
>>
>>
>>
>> On 8/17/2016 9:14 PM, Garry via VirtualVairs wrote:
>>> Hi all,
>>>
>>>
>>> Questions for all the A/C gurus out there. My 66 110hp/pg Monza with
>>> factory A/C won't cool. The system was disconnected, but still
>>> sealed, with pressure, for  few years, and I am slowly putting it
>>> back together. Tonight was final recharge night. Pulled a successful
>>> vacuum last night, which held, and added a charge, and got not
>>> cooling, but it was too late to continue the diagnostics. I wanted
>>> to finish charging tonight. The ambient temp is approx. 78 degrees,
>>> and my static pressure was 80psi. I don't have a 66 service manual,
>>> so I tried the numbers in the 65 manual. At approx. 2000 rpm, with
>>> the deck lid closed, I get 20 on the low and 130 on the high.
>>> Bumping just a few seconds of charge raised the numbers to 24/145.
>>> Output temp is at 80 degrees, so nothing yet. If I increase the
>>> pressure to about 40/200 the clutch begins to squeal. I see what
>>> looks like white liquid, fairly solid in the sight glass (could be
>>> bubbles?), but not sure exactly what pressure I should see at this
>>> outside temp. I did find the two seals on the condenser are missing,
>>> so I'll replace those tomorrow, and the deck lid seal is good, but
>>> I'm sure there are probably some small leaks around the engine seal
>>> - oh and the summer/winter plate is missing. Other than the obvious
>>> things mentioned - any ideas? I've been out of the R-12 world for
>>> way too many years.
>>>
