<VV> 2 sp. Wiper motor Hookup and switch tesing

[BBRT]

That is good and helpful, Matt.

Chuck S
----- Original Message -----
From: "Matt Nall

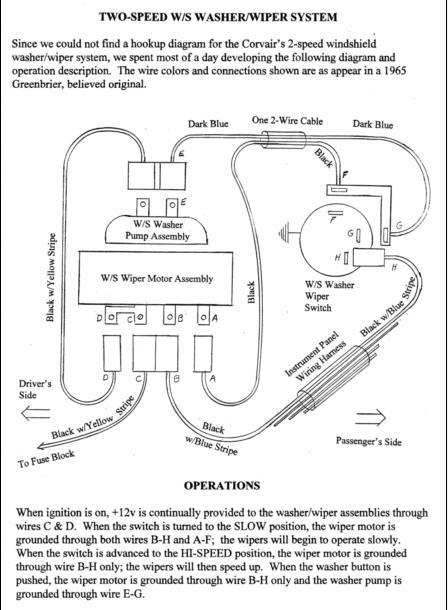

> See the attached diagram.
>
>
> To test the switch  use your Ohmmeter...  and yes both speeds and washer
> are controlled by grounding circuits.
>
> -----Original Message-----
> From: Rnojunkmail at aol.com
> Bought a rebuilt 2 speed wiper motor for my 63 Monza..,,it has 2 wires for
> the
> washer and 4 wires for the motor. How do those 4 wires go? Is the wiper
> motor
> connected to wiper switch through ground wires? May be my motor was ok and
> the
> switch was bad.  How do you test the switch?
: > URL:
<http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20140921/d11c9fa2/attachment.jpg>
> -------------- next part --------------
>> URL:
>> <http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20140921/d11c9fa2/attachment-0001.jpg>
