<VV> Interesting but partially completed Vair 4x4 Buggy question!

[jvhroberts at aol.com]

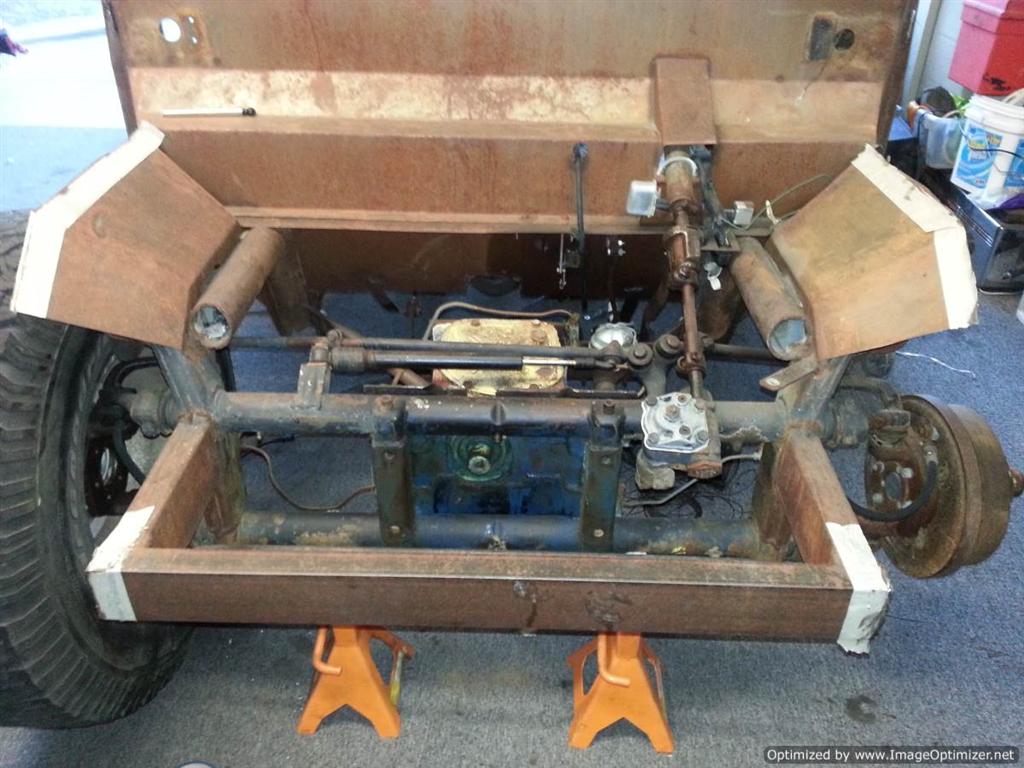

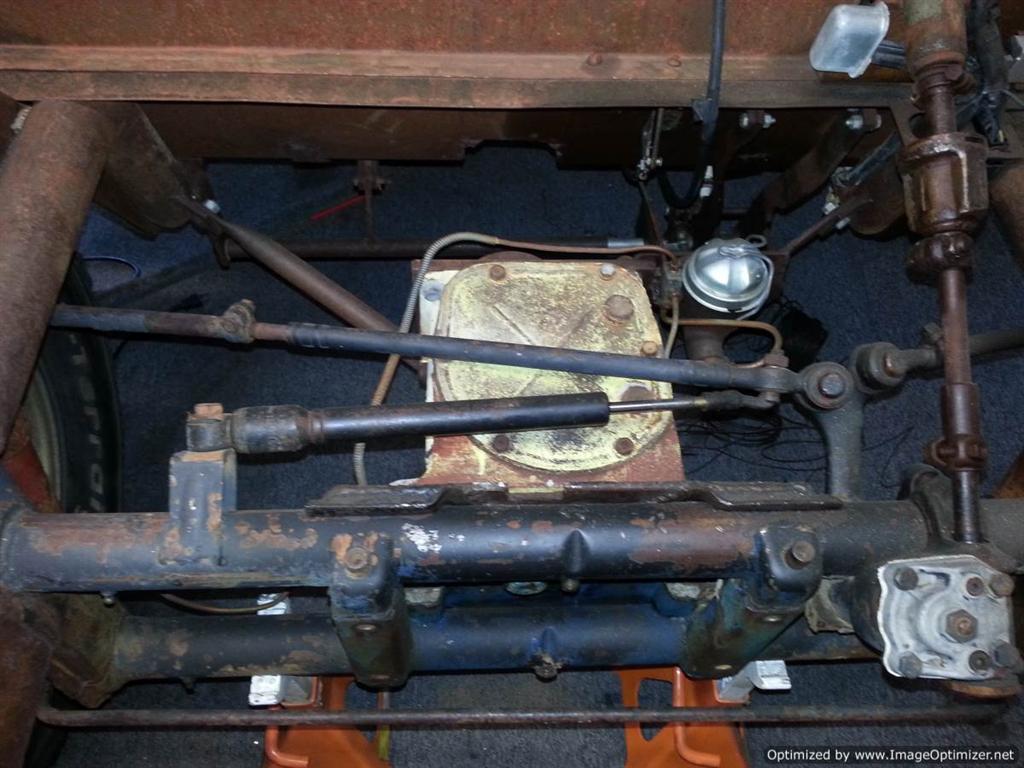

 Looks like an EM four speed with something extra. Given the EM 4 speeds have side by side main/countershafts, this is consistent. Given there's a Corvair diff at the front, my guess is someone modified the case with the intent of putting a power take off to the front diff. Like to know what they had in mind, given there's no decent access to the output shaft to the front from within the tranny. Unless he's planning on using the reverse gear teeth on the 1-2 slider...



John Roberts




-----Original Message-----
From: Matt Nall <patiomatt at aol.com>
To: virtualvairs <virtualvairs at corvair.org>
Sent: Sun, Mar 10, 2013 5:29 pm

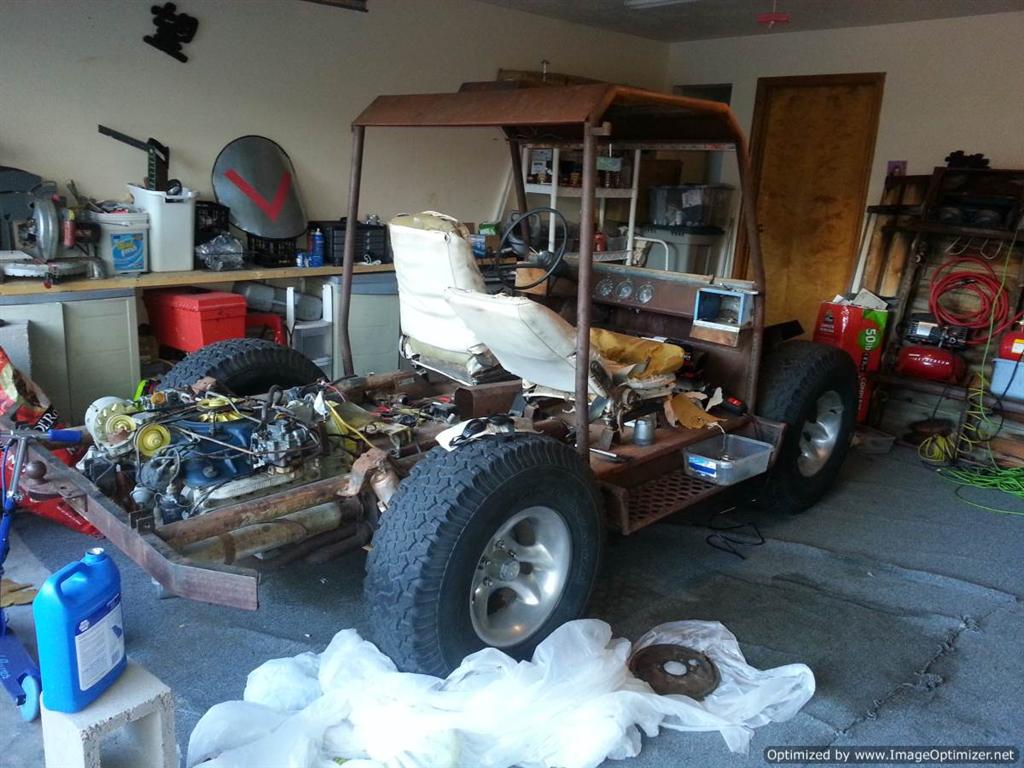

Subject: <VV> Interesting but partially completed Vair 4x4 Buggy question!

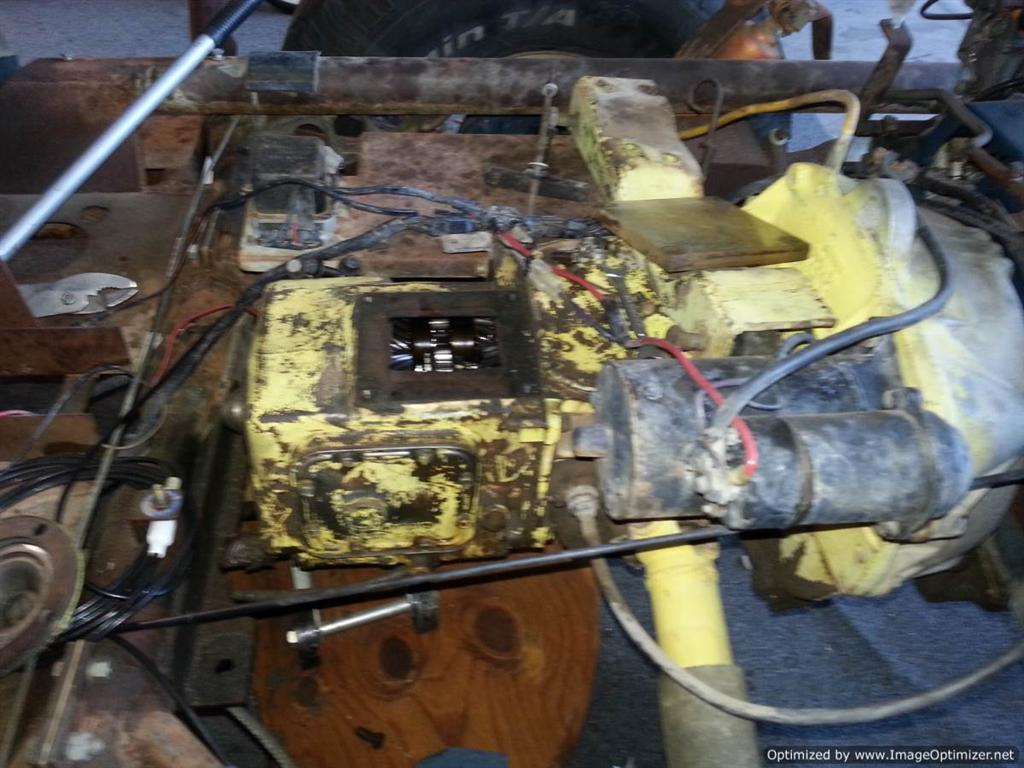

  Anyone recognize the trans with the opening on top?  It appears the builder
was  intending to take the drive off at that spot to power the front
differential!


Matt Nall
Charleston, Oregon
http://tinyurl.com/The-Corvair-Patio

http://tinyurl.com/Matts-Tech-Pages
