<VV> Need some more help with seatbelts

[dennis dorogi]

I don't know if I can help you or not.  I have a four door that had rear
seat belts.  Unfortunately, I removed them as I found they fit my rampside
perfectly and a perfect color match.   I can't get to the rampside until
tomorrow and I will  measure the belts then.  I don't think that they had
any angle mounting bracket but were just flat like any other seat belt.
Since most seat belts were a dealer installed item they certainly could vary
so there probably isn't a right way to do it.  I can try to include some

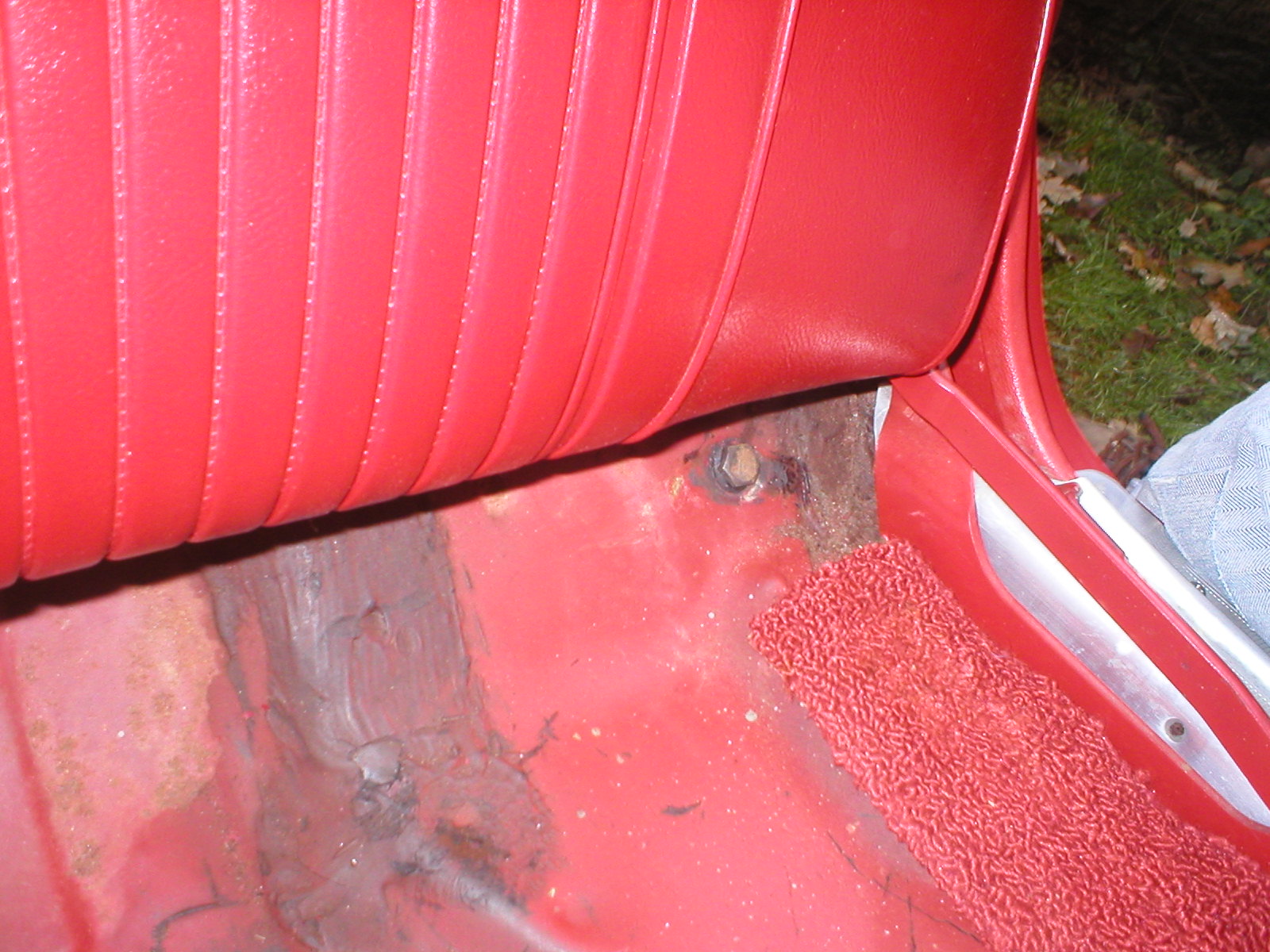

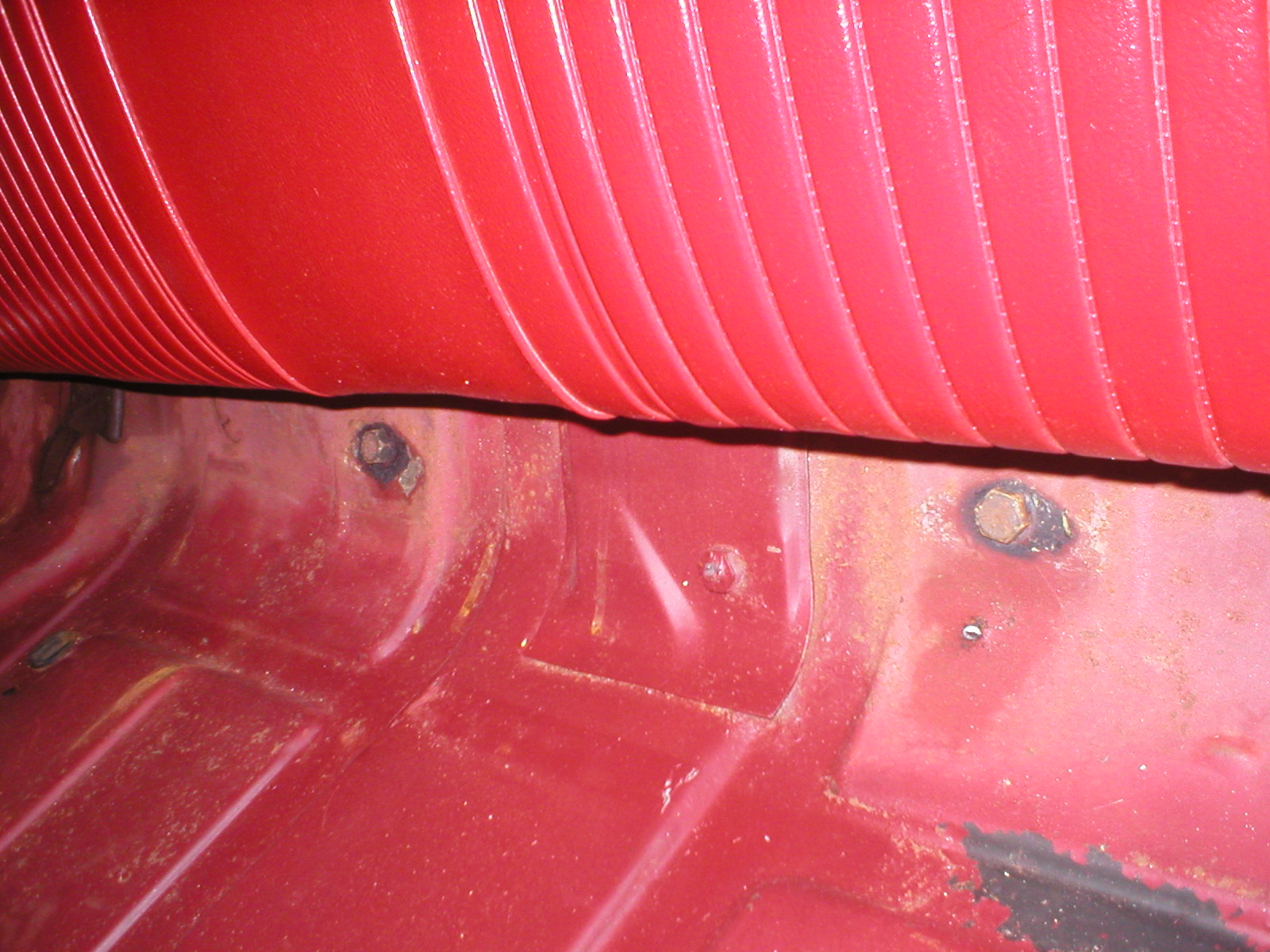

photos of the area where the seat belts mounted on my 4 door.  You can see
the mounting bolts minus the seat belts (they look great in the rampside!).

Dennis D.
Brocton, NY.
----- Original Message -----
From: "James Cooper" <cooperj123 at msn.com>
To: <virtualvairs at corvair.org>
Sent: Wednesday, January 25, 2012 7:23 PM
Subject: <VV> Need some more help with seatbelts


>
>
> Hello all,  I have a couple more questions for installing seatbelts in the
> rear of a '65 sedan that never had them.First- thank you to all who
> replied with help earlier, I have been able to locate the dimples where
> the holes should be drilled and have a copy of the seatbelt installation
> instructions in hand for 1965 rear seat belt mounting.I have a set of
> front seatbelts that I can send in to be repaired/rewebbed.  I sat in the
> car and placed the belts in the location they would be installed and as
> best I can tell the length for the male end belt should be about 20 inches
> and the length for the buckle end belt should be about 30 inches.  Can
> anyone measure the belts in their car and tell me about what length I
> should have them made to?Also, the mounting brackets are a bit confusing.
> In the picture of the installation drawing they are shown as having a
> round hole that bolts to the body and the other end of the bracket is
> slotted?  I think what is being shown is actually the
> end of the belt and that the webbing is just not shown in the drawings-
> i.e. the tab on the end of the belt is not flat but bent at an angle and
> bolted directly to the floor-is this correct?I think what I will do is
> contact the company that repairs the belts, I haven't decided on Ssnake
> Oyl products or Seat Belt solutions yet, and see if they can put an end on
> the re-webbed belts that would be compatible with a Jegs mount like this
> one,
> http://www.ebay.com/itm/JEGS-70016-60-Degree-Seat-Belt-Mounting-Bracket-JEGS-/200598700061?pt=Other_Vehicle_Parts&vxp=mtr&hash=item2eb49d401d
> It is a 60 degree angle for the mid mounts and maybe a 90 degree bracket
> for the ends?  Belt could bolt to the bracket and the bracket to the body
> with a reinforcing plate on the other side of the sheet metal.  The ends
> of the belts that I have are seriously rusted and weakened. A photo of the
> mount brackets in a late model car would help me a ton if anyone can send
> one. Thanks!Jim
> _______________________________________________
> This message was sent by the VirtualVairs mailing list, all copyrights are
> the property
> of the writer, please attribute properly. For help,
> mailto:vv-help at corvair.org
> This list sponsored by the Corvair Society of America,
> http://www.corvair.org/
> Post messages to: VirtualVairs at corvair.org
> Change your options:
> http://www.vv.corvair.org/mailman/options/virtualvairs
> _______________________________________________
-------------- next part --------------
A non-text attachment was scrubbed...
Name: seat belts, 4 door 016.jpg
Type: image/jpeg
Size: 409111 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20120125/d1c2da50/attachment.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: seat belts,  015.jpg
Type: image/jpeg
Size: 401152 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20120125/d1c2da50/attachment-0001.jpg
