<VV> window alignment

[Cliff Tibbitts]

A couple of folks have asked for pictures.  Here are three that might give
you an idea of what I am dealing with.  It is almost as if the quarter glass
needs to rotate CCW.  That of course would mess up the vertical alignment.
In the pictures the weather stripping has been removed.  In order to get the
two edges to line up I had to lower the quarter window about 3/16".  In the
picture the quarter window is almost touching the stainless trim at the
lower left corner.  It's as if the contour of the glass is different than
the roof line.  ?????????????

-------------- next part --------------
A non-text attachment was scrubbed...

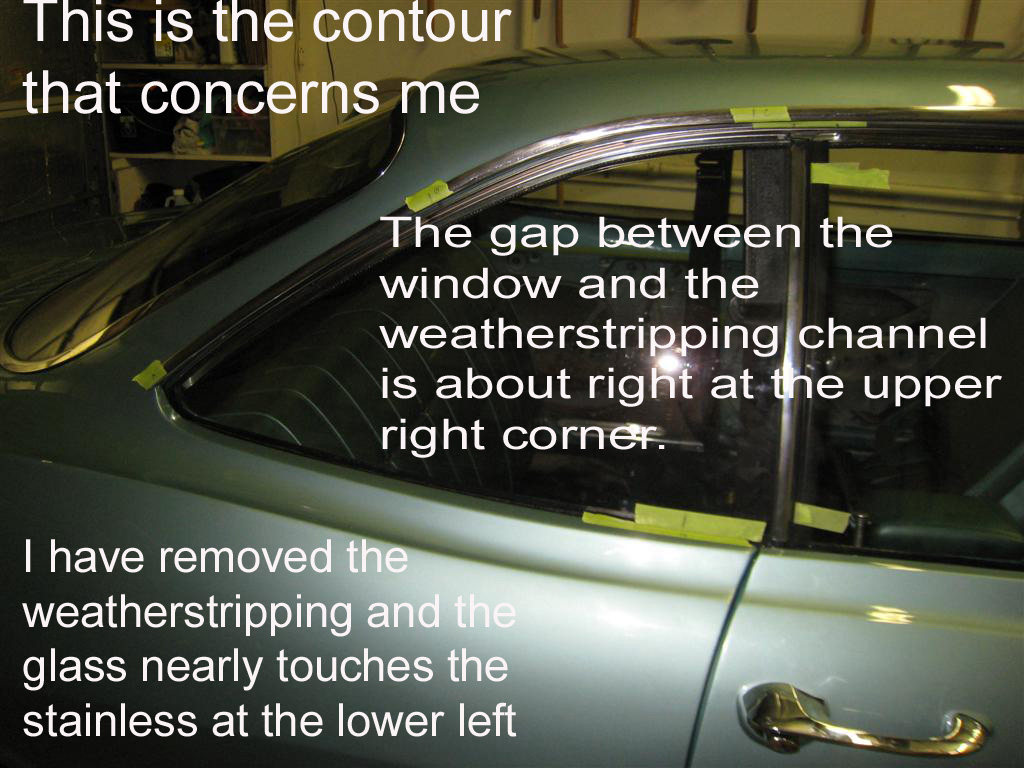

Name: contour.jpg
Type: image/jpeg
Size: 235858 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20120216/e4acbad0/attachment.jpg
-------------- next part --------------
A non-text attachment was scrubbed...

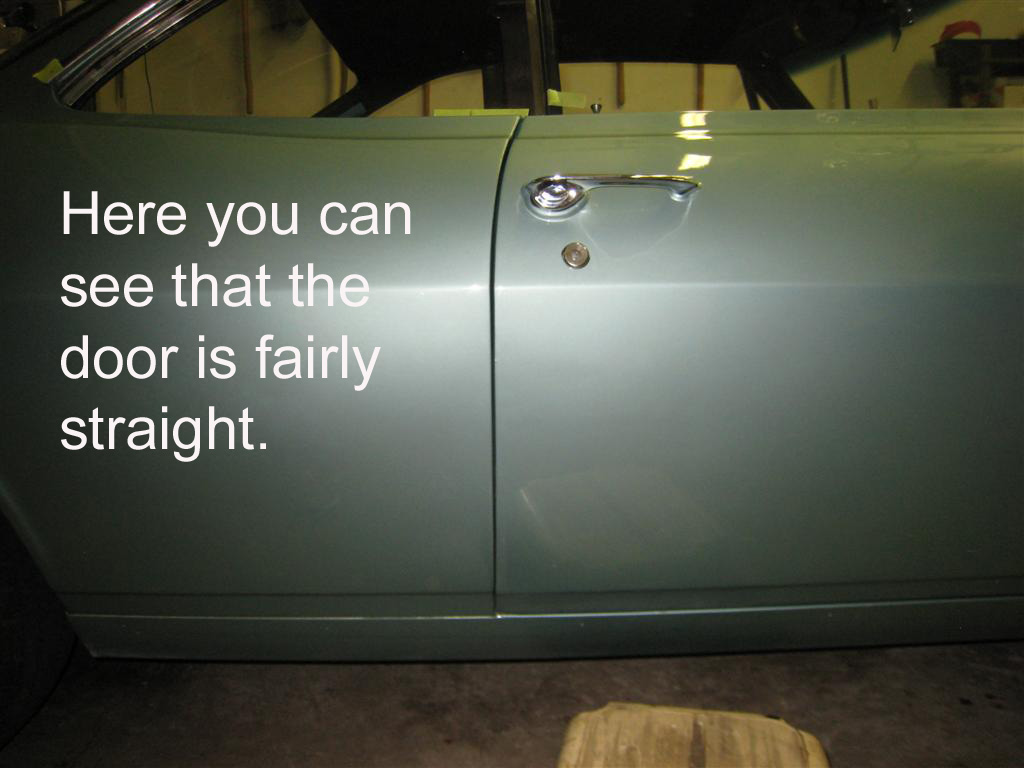

Name: door edge.jpg
Type: image/jpeg
Size: 122951 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20120216/e4acbad0/attachment-0001.jpg
-------------- next part --------------
A non-text attachment was scrubbed...

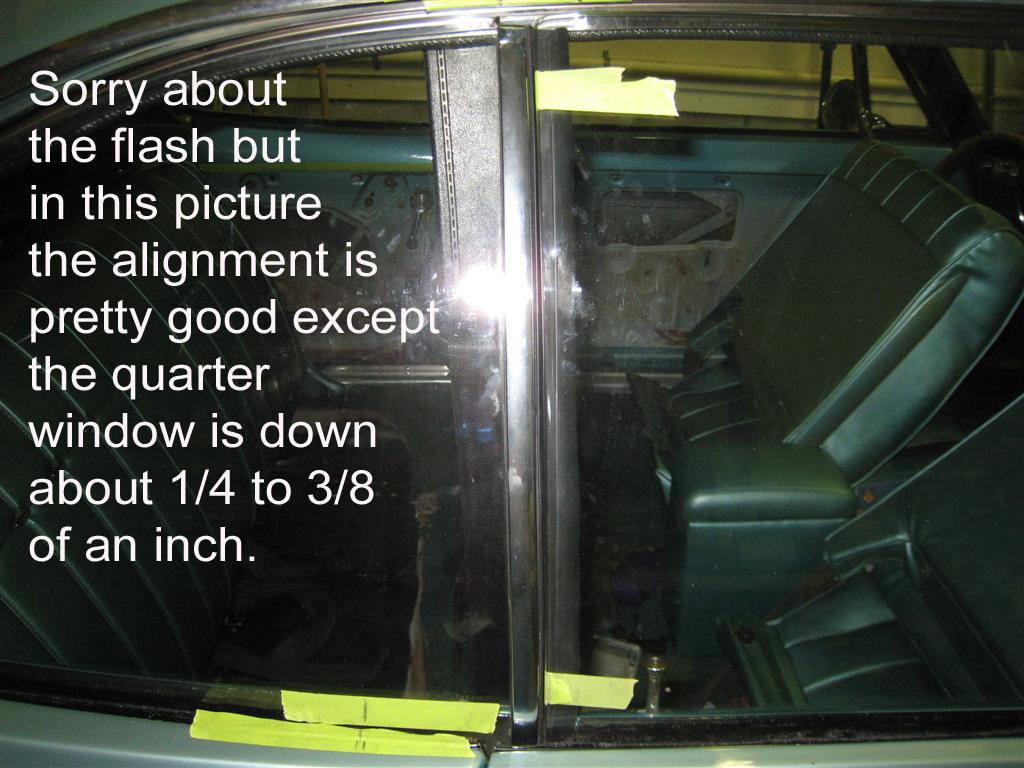

Name: window joint.jpg
Type: image/jpeg
Size: 210843 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20120216/e4acbad0/attachment-0002.jpg
