<VV> am fm bench setup

[jvhroberts at aol.com]

 Wow, Tim, these are VERY useful! Thanks.



John Roberts




-----Original Message-----
From: N2VZD <N2VZD at aol.com>
To: virtualvairs <virtualvairs at corvair.org>
Sent: Mon, Dec 10, 2012 2:03 pm
Subject: Re: <VV> am fm bench setup

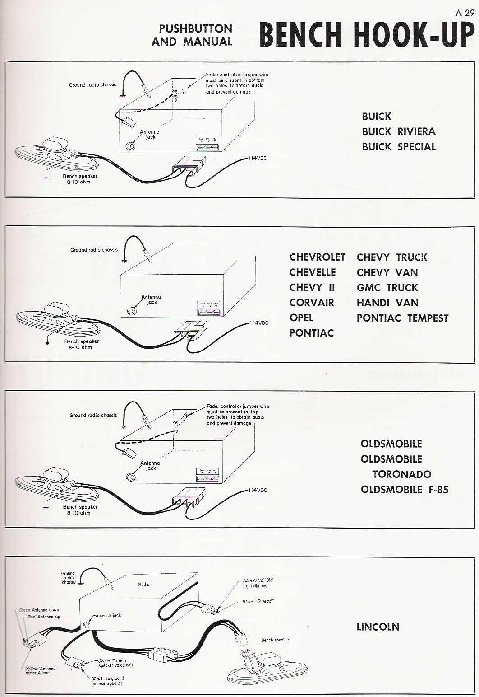

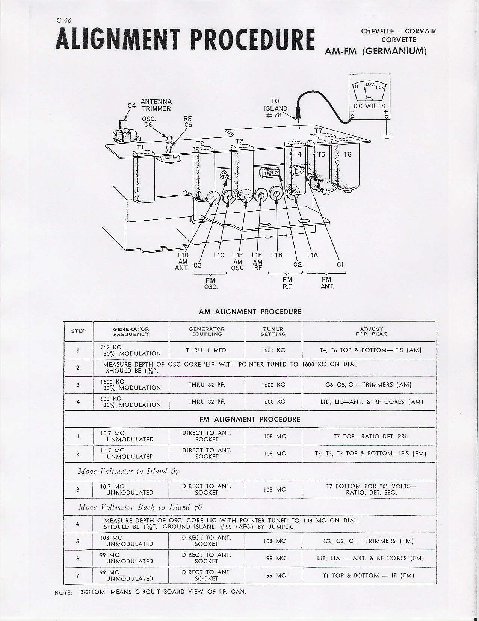

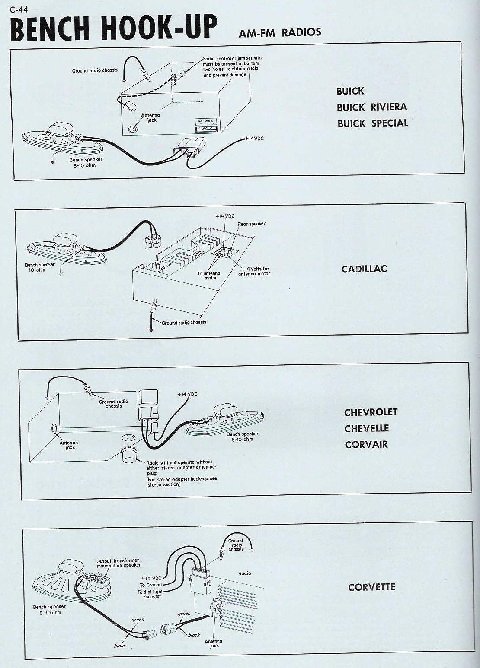

here are scans from my 66 DELCO service manual.
I suggest pro help (not me , way too busy!!) if alignment needed more than
ant trimmer.
Regards, Tim Colson

-------------- next part --------------

-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: image/jpeg
Size: 71403 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20121210/e132f330/attachment.jpe

-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: image/jpeg
Size: 72204 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20121210/e132f330/attachment-0001.jpe

-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: image/jpeg
Size: 80951 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20121210/e132f330/attachment-0002.jpe
