<VV> Removing connectors
Daniel Monasterio
dmonasterio at hotmail.com
Mon Aug 6 14:08:54 EDT 2012

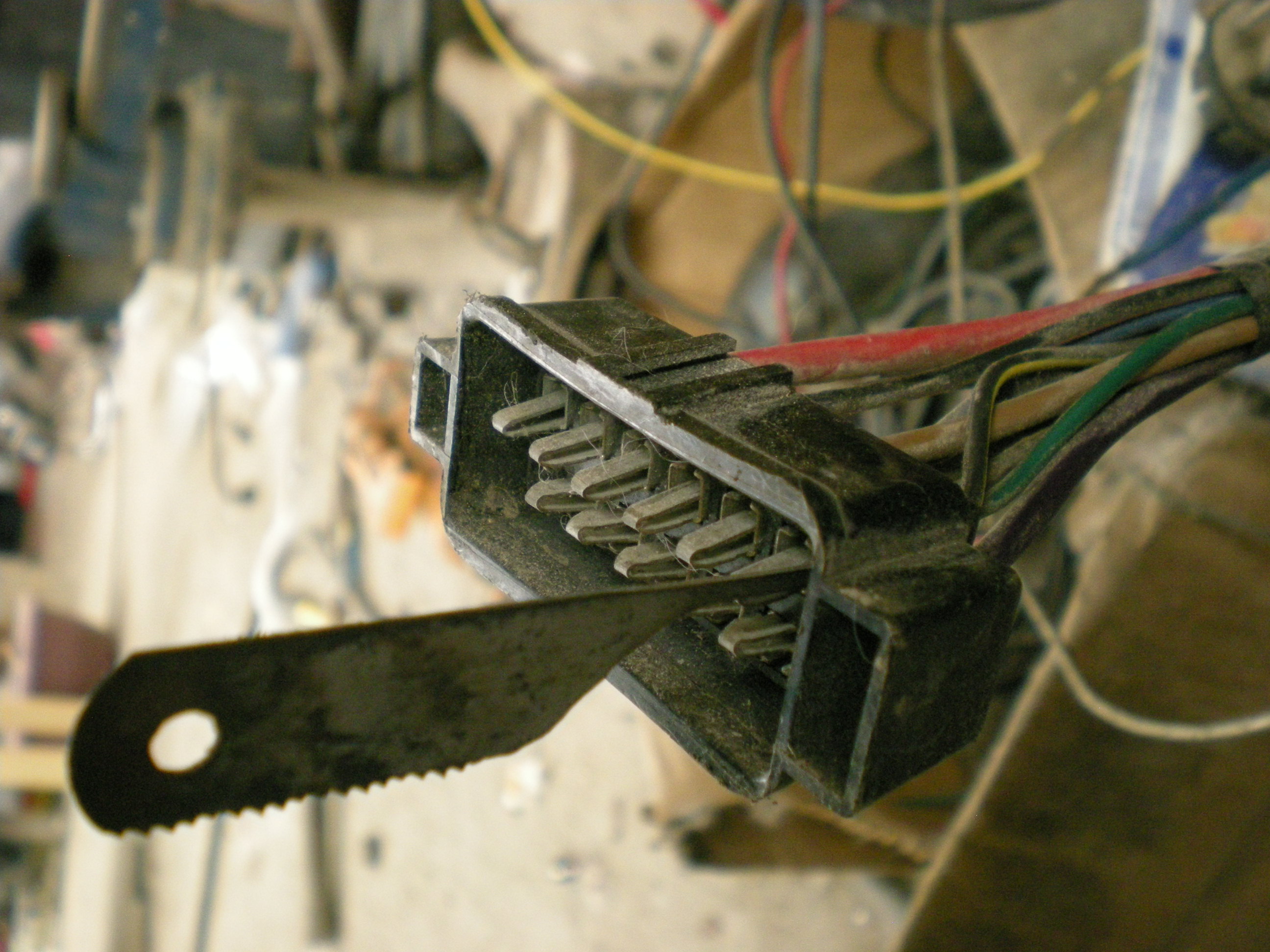

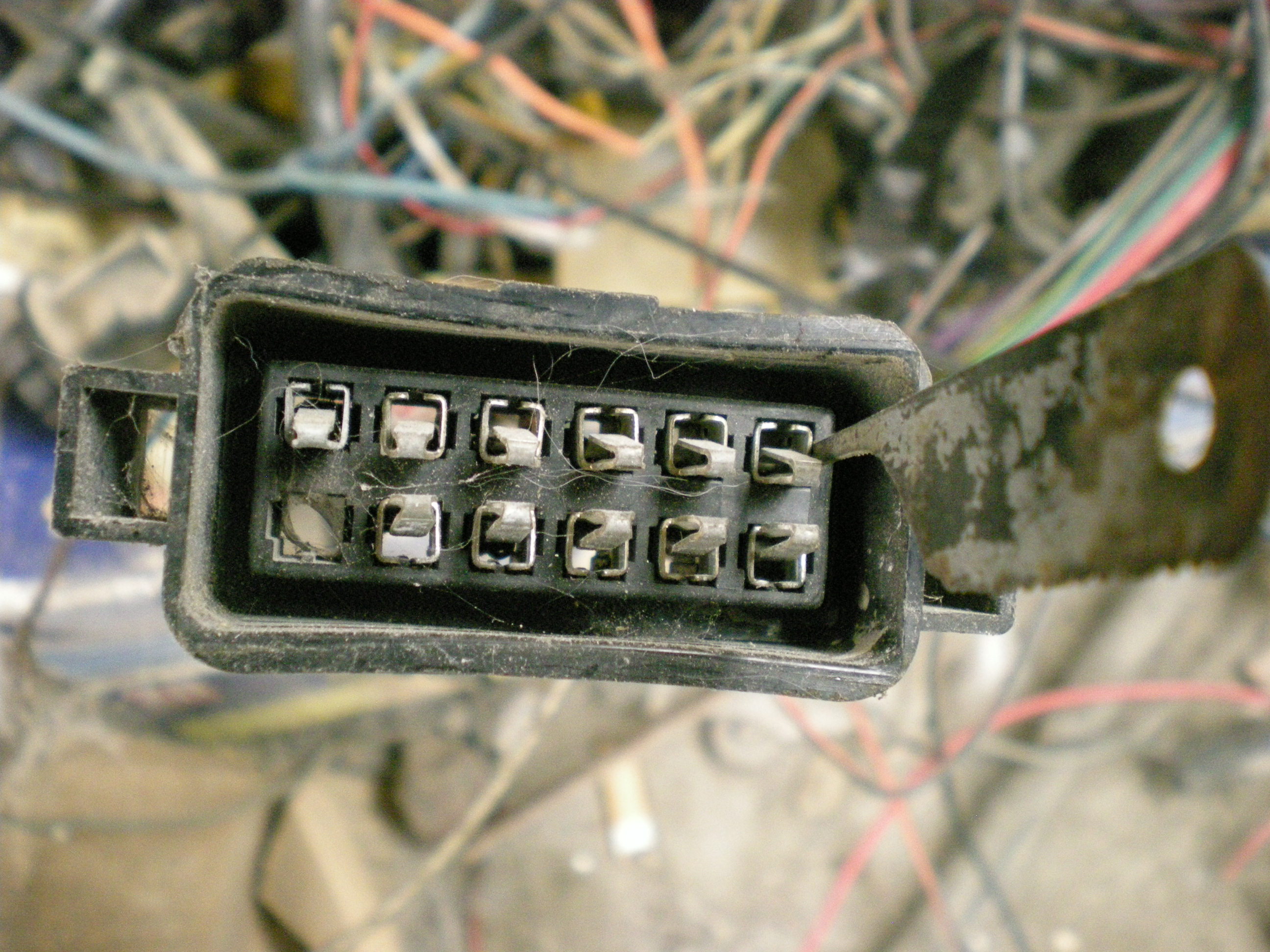

Make a tool, like the one on pictures, from a broken hack saw by grinding. Insert (fully) like on picture twisting back and forth on both sides of the connector.Use same tool for early connectors and/or cleaning plugs.
Daniel Monasterio
> Date: Mon, 6 Aug 2012 09:50:19 -0700
> From: dixon5553 at yahoo.com
> To: virtualvairs at corvair.org
> Subject: <VV> Removing connectors
>
> Anyone know how to remove the pin connectors found the in dash wiring harness (the harness on the Instrument Panel) on a late model cluster
> _______________________________________________
> This message was sent by the VirtualVairs mailing list, all copyrights are the property
> of the writer, please attribute properly. For help, mailto:vv-help at corvair.org
> This list sponsored by the Corvair Society of America, http://www.corvair.org/
> Post messages to: VirtualVairs at corvair.org
> Change your options: http://www.vv.corvair.org/mailman/options/virtualvairs
> _______________________________________________
