<VV> Fwd: Removing connectors

[Dave Keillor]

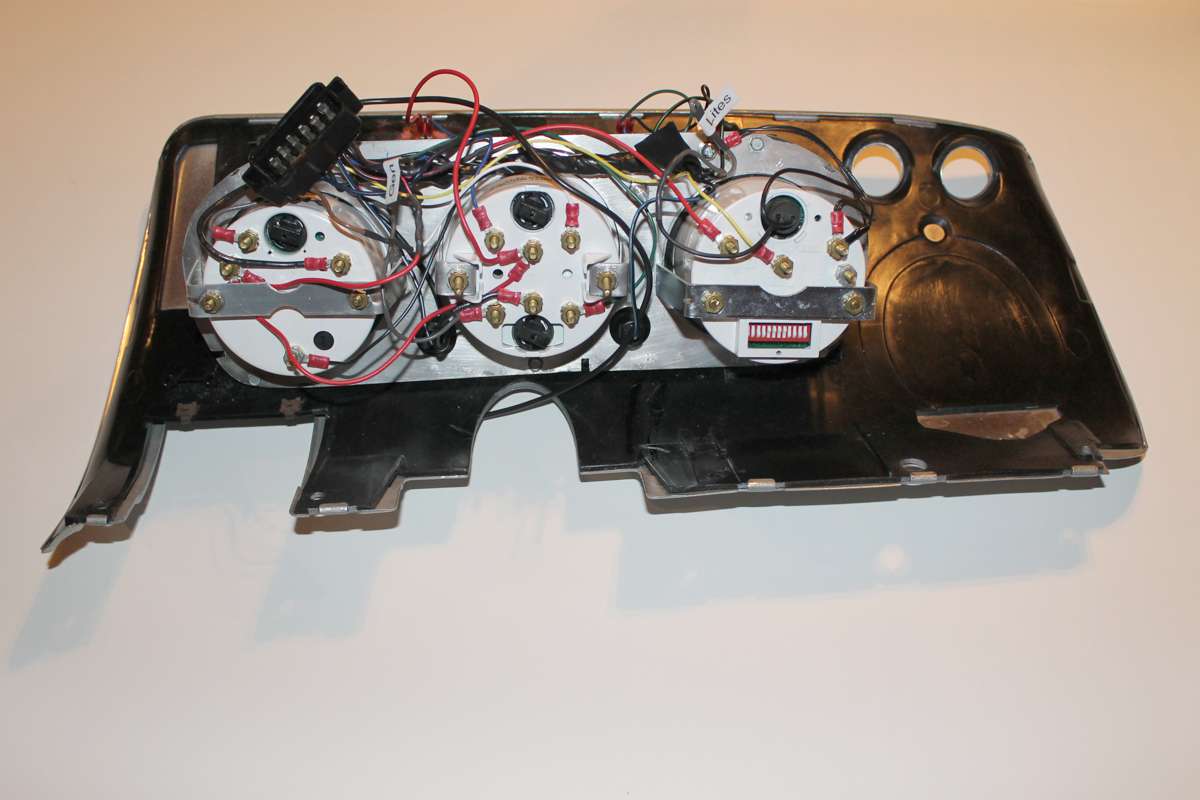

See attached picture.  This is a custom dash, but I adapted the OEM cluster
cable.  The connector is in the upper left part of the picture.  There are
snap tabs on each end of the mating connector (the one that mates to the
connector shown).  The tabs have to be pressed inwards to release.
 However, the connector doesn't usually come apart easily even after the
tabs are released and may need some help from a screwdriver to pry it apart.

Dave.

On Mon, Aug 6, 2012 at 11:50 AM, rich dixon <dixon5553 at yahoo.com> wrote:

> Anyone know how to remove the pin connectors found the in dash
> wiring harness (the harness on the Instrument Panel) on a late model cluster
>  _______________________________________________
> This message was sent by the VirtualVairs mailing list, all copyrights are
> the property
> of the writer, please attribute properly. For help, mailto:
> vv-help at corvair.org
> This list sponsored by the Corvair Society of America,
> http://www.corvair.org/
> Post messages to: VirtualVairs at corvair.org
> Change your options:
> http://www.vv.corvair.org/mailman/options/virtualvairs
>  _______________________________________________
>



--
Dave Keillor
Technology Concepts
507-529-2955 (direct)
507-254-6390 (cell)




--
Dave Keillor
Technology Concepts
507-529-2955 (direct)
507-254-6390 (cell)
