<VV> Power Enrichment Needle

[Matt Nall]

The shop manual shows the Power Enrichment Needle as sitting on top of the
accelerator return spring.  I never noticed anything there like that needle.
The diagram doesn't seem too clear.

Would anyone know where that needle goes?

Thanks!...Bill

===============================================




Nope!!


The accel pump check valve is at the gasket seam of the body.


 PEV  is under the cluster!


Is your manual that messed up???  ggg


see pics attached


Matt Nall
Charleston, Oregon
http://tinyurl.com/The-Patio
http://tinyurl.com/Matts-Tech-Pages







-------------- next part --------------
A non-text attachment was scrubbed...

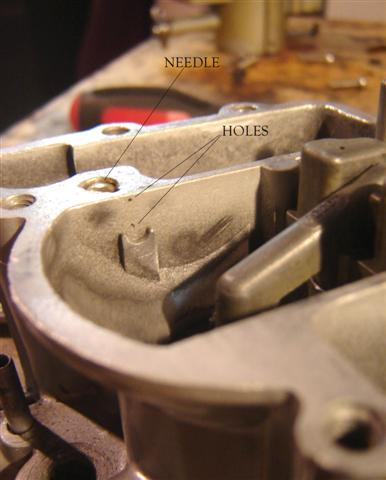

Name: carb holes 002 (Small).jpg
Type: image/jpeg
Size: 32584 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20111126/76b97d7f/attachment.jpg
-------------- next part --------------
A non-text attachment was scrubbed...

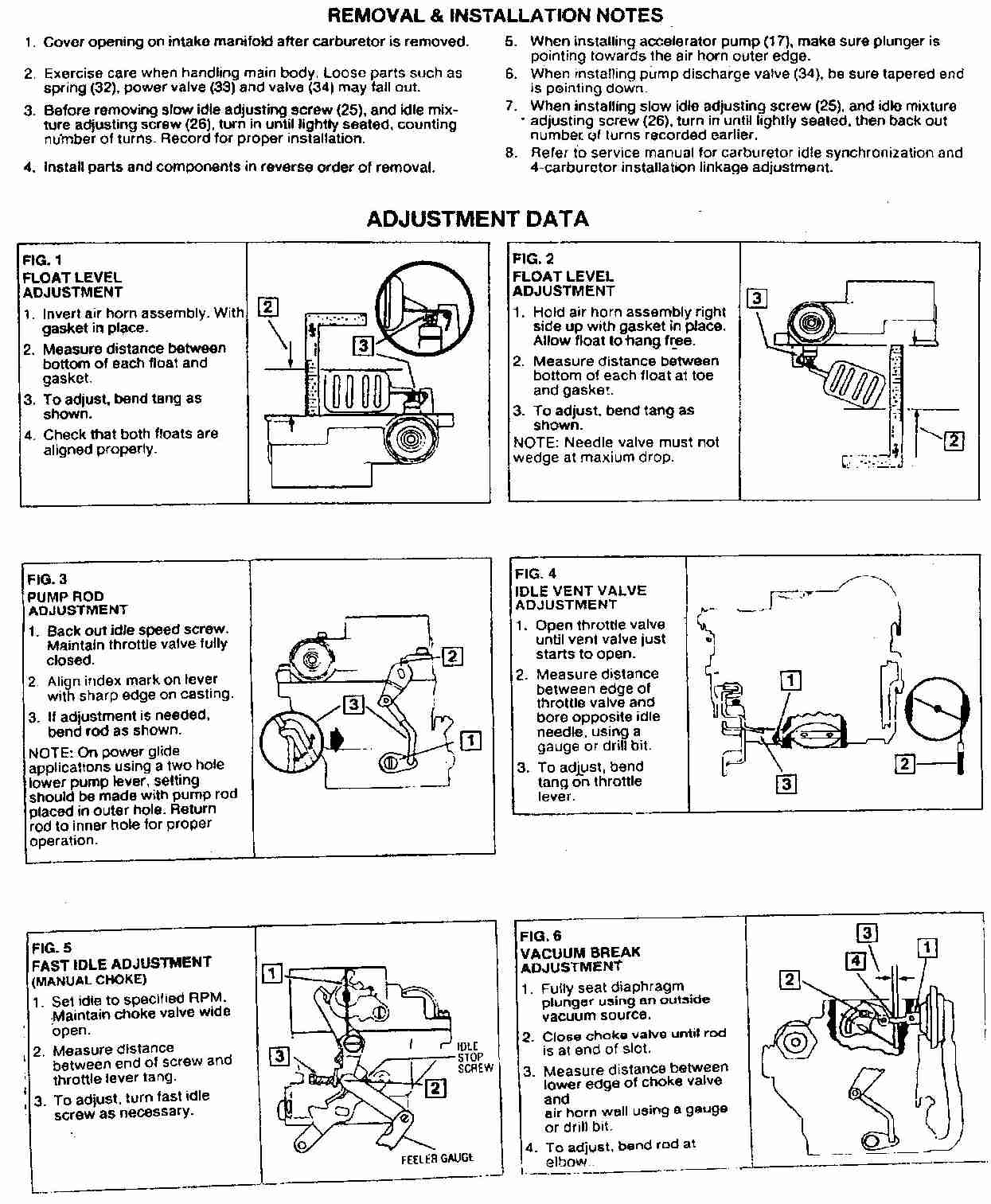

Name: RochesterHVsetup-1.jpg
