<VV> Internally Regulated Alternator

[Matt Nall]

Here you go.. attached.


Matt Nall
Charleston, Oregon
http://mysite.ncnetwork.net/reswr0kp/





-----Original Message-----
From: Joe Hennerfeind <hennerfeind_joe at yahoo.com>
To: virtualvairs <virtualvairs at corvair.org>
Sent: Wed, Jul 6, 2011 7:55 am
Subject: <VV> Internally Regulated Alternator


Thanks for all the input on how to distinguish the internally regualted
alternator - turns out I have it.  Next question, my tech guide is in a storage
unit in Denver and I know it has the wiring conversion - any source of that
diagram online?  I have my new harness to convert, and the harness I pulled out
of the car was a junk of spaghetti.  Thanks, Joe
________________________________


-------------- next part --------------
A non-text attachment was scrubbed...

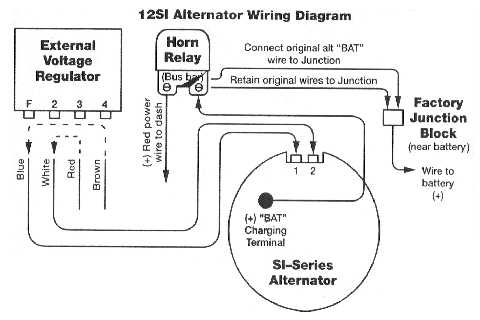

Name: 12si-alt-wiring.jpg
Type: image/jpeg
Size: 19734 bytes
Desc: not available
Url : http://www.vv.corvair.org/pipermail/virtualvairs/attachments/20110706/c400ddf3/attachment.jpg
